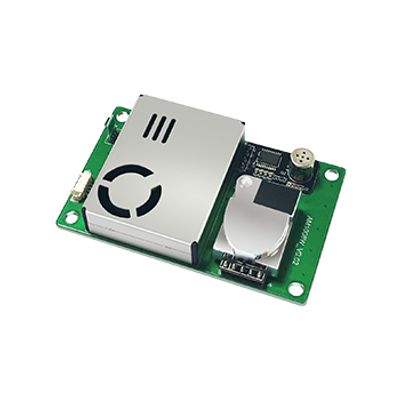

Wuhan Cubic - Model AM1008W -Integrated Air Quality Sensor Module

• 4 in 1 sensor module which integrated particle, CO2, VOC and RH&T
• PM1.0 PM2.5 and PM10 output simultaneously
• Auto-calibration NDIR CO2 sensor
• Precise accuracy and robust performance
• With voltage regulator design and EMC compliant, strong anti-static ability
• Ultra-thin structure

• Measurement range: CO2: 0~5000ppm; PM: 0~1000μg/m³; VOC: 0~3level;
• Temperature: -20℃~70℃; RH:0%~95%RH
• PM accuracy: PM1.0/PM2.5: 0~35μg/m³: ±5μg/m³; ＞35μg/m³: ±15% of reading
• PM10: 0~100μg/m³: ±30μg/m³; >100μg/m³: ±30% of reading (0~300ug/m3, 25℃±2℃, 50±10%RH, GRIMM, Cigarette+Arizona A1)
• CO2 accuracy: ±(50ppm+5% of reading) (0~2000ppm, 0~50℃, 50±10%RH)
• Working condition: -10℃~50℃, 0~95%RH(non-condensing)
• Storage condition: -30℃~70℃, 0~95% RH(non-condensing)
• Power supply: DC 5V±0.1V
• Ripple wave: ＜50mV
• Working current: <300mA
• Signal output: UART_TTL, I²C
• Dimensions: W80*H50*D13.6(mm)
