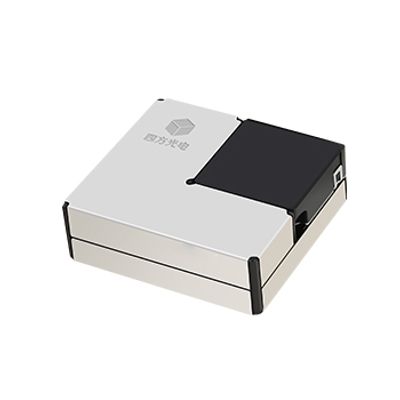

Wuhan Cubic - Model AM1002 -Integrated Air Quality Sensor Module

• 4 in 1 sensor module which integrated particle, VOC and RH&T.
• Real time PM1.0 PM2.5 and PM10 output simultaneously.
• High accuracy, high sensitive and quick response.
• Temperature compensation algorithm.
• Matrix calibration technology and optimized algorithm, for high accuracy and consistency.
• Long lifespan and high stability.
• Small size, compact structure, easy to install.

• Measurement range: PM: 0~5000μg/m³; VOC: 0~10ppm;
• Temperature: -20℃~70℃
• RH: 0%~99%RH
• PM accuracy: PM1.0/PM2.5: 0~100μg/m³: ±10μg/m³; 101~500μg/m³: ±10% of reading
• PM10: 0~100μg/m³: ±25μg/m³; 101-500ug/m3: ±25% of reading 25℃±2℃, 50±10%RH, GRIMM, Cigarette+Arizona A1)
• VOC consistency: Typical/Max: 20%/25%
• Temperature accuracy: 0°C ~ 40°C: ±1°C
• Humidity accuracy: 5%-95%RH: ±5%RH
• Working condition: -20℃~60℃, 0~95%RH(non-condensing)
• Storage condition: -40-80℃, 0~95% RH(non-condensing)
• Power supply: DC 5V±0.1V; ripple wave ＜50mV
• Working current: <100mA
• Signal output: UART_TTL
• Dimension: W38*H35*D12 (mm)
