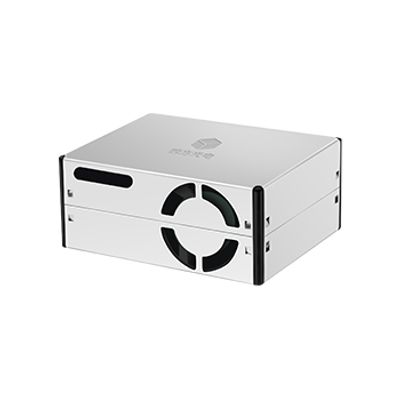

Wuhan Cubic - Model AM1009 -Integrated Air Quality Sensor Module
AM1009 is an integrated air quality sensor module with function of particle concentration, VOC and NO2 concentration, temperature and relative humidity measurement. Particle concentration is measured by laser particle sensor which uses light scattering principle. It measures and calculates the suspended particle number exactly, and output particle mass concentration μg/m3 directly via mathematical algorithm and scientific calibration. VOC&NO2 concentration are measured by a combined MOX sensor, which can detect VOC and NO2 simultaneously. It has extremely high sensitivity to various kinds of organic volatile gases such as formaldehyde, benzene, ethanol, formic acid, nicotine and some inorganic gases like carbon monoxide, ammonia and hydrogen.
- 5 in 1 sensor module which integrated particle, VOC NO2 and RH&T
- Real time PM1.0 PM2.5 and PM10 output simultaneously
- High accuracy, high sensitive and quick response
- Temperature compensation algorithm
- Matrix calibration technology and optimized algorithm, for high accuracy and consistency
- Long lifespan and high stability
- Measurement range: PM: 0~5000μg/m³; VOC: 0~10ppm; NO2: 0-1000ppb
- Temperature: -20℃~70℃
- RH: 0%~95%RH
- PM accuracy: PM1.0/PM2.5: 0~100μg/m³: ±10μg/m³; 100~500μg/m³: ±10% of reading
- PM10: 0~100μg/m³: ±20μg/m³; >100μg/m³: ±20% of reading
- 25℃±2℃, 50±10%RH, GRIMM, Cigarette+Arizona A1)
- VOC accuracy: 160ppb or ±40% of reading, whichever is larger (25±2℃, 50 ±10%RH）
- NO2 accuracy: 40ppb or ±40% of reading, whichever is larger (25±2℃, 50 ±10%RH）
- Temperature accuracy: 0°C ~ 50°C: ±1°C
- Humidity accuracy: 5%-95%RH: ±5%RH
- Working condition: -10℃~50℃, 0~95%RH(non-condensing)
- Storage condition: -30℃~70℃, 0~95% RH(non-condensing)
- Power supply: DC 5V±0.1V; ripple wave ＜50mV
- Working current: <105mA
- Signal output: UART_TTL
- Dimension: W50*H38*D21 (mm)
Air Purifier
Air pollution contributes to millions of premature deaths throughout the world each year. In China, rapid industrialization has wrought intense levels of air pollution that poses a serious threat.
Fresh Air System
With the rapidurbanization process, the problem of energy consumption has become more andmore serious.Among them, building energy consumption is one of the largestenergy consumptions.
Fresh Air System Controller
For the purpose of achieving energy saving and comfort environment, and with wide spread of internet+ and IoT, especially CO2 and particle sensors development, HVAC system is developing very fast.
Air Quality Monitor
With the improvement of people`s living standards, more and more people begin to pay attention to the air quality of their living environment.

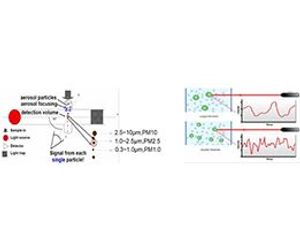

Light Scattering Technology Schematic Diagram
Particles in the air have ascattering effect on incident light, and the intensity of the scattered lightis related to the particle size. Inhaling air particles from the sampling vent,and the air dust particles will pass through the light sensitive area. So thedust particles are irradiated by light and will scatter a light pulse signal whichis proportional to the particle size.
