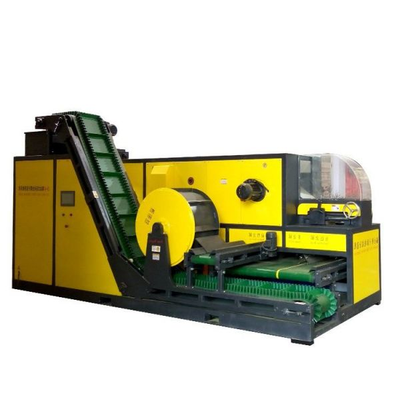

Ejet - Model ECS -Integrated Eddy Current Separator
Ejet designs a new Eddy Current Separator System – Integration Eddy Current Separation Line. The compact structure combines ECS with a vibratory feeder and drum magnet. This enables you to enhance your processes with minimal construction outlay, even where space is limited.
The separator could be equipped with an eccentric pole or concentric pole ECS series type. And there is a high magnetic intensity magnetic drum in prior to protect the eddy current separator.
This machine combines all functions of eddy current separator, magnetic separator, and vibrating feeder to save cost and reduce floor area.
Integrates other extras including high-intensity magnetic drum, vibratory feeder, chutes, covers, base frame, brush, electric control cabinet, belt speed control panel, automatic injection of oil feeder, etc.
Working widths: 400/650/800/1000/1200/1500 mm
This is a multifunctional sorting machine suitable for sorting ferrous metals (iron), nonferrous metals (titanium, aluminum, magnesium, potassium, sodium, calcium, strontium, barium, etc.) and non-metals (glass, plastic, rubber, (Paper, slag, etc.)
