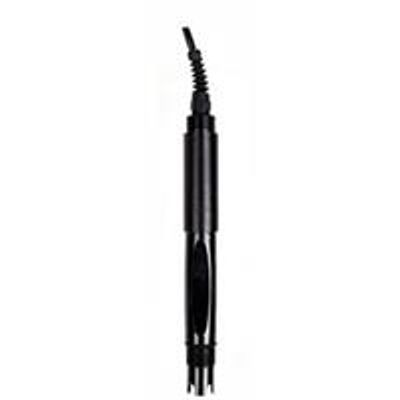

Chemins - Model ORP-202 -Integrated Industrial Online ORP Sensors
With automatic temperature compensation. Output standard Rs485 (Modbus/RTU protocol) digital signal or 4~20mA signal. The Rs485 signal is easily connected to third-party devices such as PLCs, DCS, industrial control computers, general-purpose controllers, paperless recording instruments or touch screens. Parameter settings are more convenient and faster. The calibration function provides a quick and easy way to calibrate. Real-time data transmission allows you to get timely and accurate data on monitoring water bodies.
Most popular related searches
ORP sensor
water body monitoring
drinking water source
pH/ORP sensor
marine water
water source
water body
water quality
environmental monitoring
water treatment
Various water treatments (river/lake/potable water source/groundwater/marine water quality, etc.), aquaculture, environmental monitoring, CIP and other industries.
- Measurement Range -1500～+1500mV
- Resolution 1mV
- Accuracy ±6mV
- Operating temperature 0～65℃
- Working pressure ＜0.1MPa
- Power Supply 12VDC～24VDC ±10%
- Output Mode Rs485(Modbus/RTU)
- Wetted material PPR
- Installation 3/4 “NPT thread, immersion mounting
- Cable length 5m, other length can be customized
- Calibration method One point calibration
- Power ＜0.5W
- Degree of protection IP68
