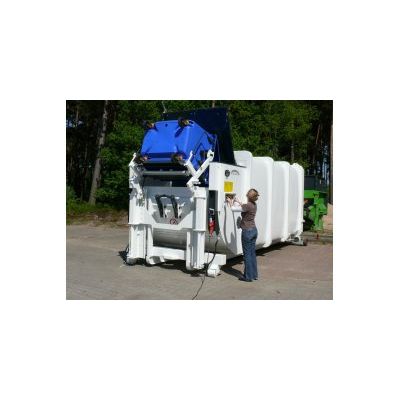

Bergmann - Integrated Lift Tipping Device for Emptying Waste Bins
The integrated BERGMANN’s hub-tilting-device is the ideal additiona equipment to existing large garbage containers. With its assistance, a local combination and emptying of existing standard containers or press boxes can take place. The integrated BERGMANN lift-tipping-device is the ideal accessories for existing large garbage bins. With its help, a local consolidation and emptying of existing normal bins can take place into the compaction box. The operation is simply and savely carried out via two-hand control. The containers can be received and tipped via comb lifting system with various heights as well as a pivot take-up.
Most popular related searches
waste container
emergency stop buttons
lifting device
large waste container
emergency stop
trash compaction
locating system
mobile bin
container press
e-waste
Integrated hydraulic tipping-device for emptying waste bins
- Secure and rapid emptying of revolving emptying system into the Alpha-Pack-Bin and/or Mobile-Pack-Bin.
- Can be used everywhere, where, in several places in the plant, materials accumulate, which are first collected in standardised small containers and then introduced to a central place.
- Automatic lifting and tipping of the container with extreme net weights.
- Due to the special design, containers with different dimensions (e.g. different comb heights) can be tipped easily.
- The tipping mechanism that can be integrated in various Alpha-Pack-Bins of the types APB 607, APB 606 and APB 616 (unwinder).
- The tipping mechanism that can be integrated in various trash compaction boxes of the types MPB 906 and MPB 907 (unwinder).
- Bergmann Alpha-Pack-Bin, connected to an existing electrical connection
- The waste bin with up to 1,100-liter volume is pushed into the pick-up device
- By means of hydraulics, the container is raised and lifted
- Containers of various designs and pick-up systems can be tipped. (design-dependent)

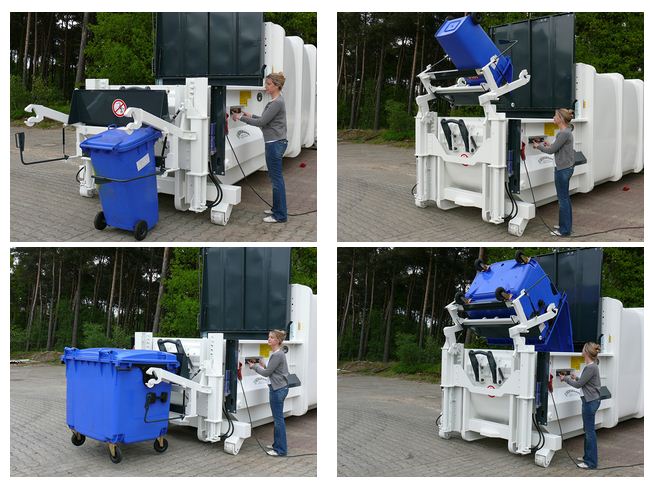

- The series of pictures below shows tipping processes with comb lifting system and pivot take-up at the Alpha-Pack-Bin model APB 607
- Central collection and emptying of all small waste bins
- Option of emptying all existing small waste bins in BERGMANN compaction boxes, a further savings potential
- Security by two-hand control, lockable control panel and emergency stop button
- Flexible adjustable tipping-device
- Nearly all types of containers can be emptied with this tipping-device
- No alterations or additional equipment necessary for bins with different comb heights
- Tipping bins with a high net weight
- Designed for intensive, continuous use.
- Proven worldwide for over 20 years with the highest quality standard
- High, fast and available for spare parts for many years, guaranteed for 15 years
- Worldwide service centres
- Emptying of bins of up to 1,000 liters
- Flexible application due to a special construction, which can be adjusted to different containers with various pivot and comb heights
- Distortion free and sturdy steel construction
- Pivot take-up available for different pivot heights
- Comb lifting system and tilting device available for different comb heights
- Loading bucket possible as a special solution (approx. 1.8 m³)
- Lifting capacity approx. 700 kg
- Hydraulic drive
- CE certified
- Completely “Made in Germany” by qualified and experienced staff
- Pivot take-up for revolving emptying system
- Two-hand control
- Emergency-stop button
- Lockable control panel
- Lid opener
- Comb lifting system

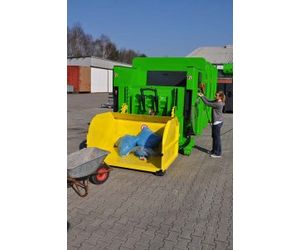

- Loading bucket
- Tipping-device with fork pick-up
- … ask for special versions
- As central disposal location in production and warehouse for revolving emptying systems
- Recycling depots
- Hospitals
- Anywhere where revolving emptying systems are used for the disposal
