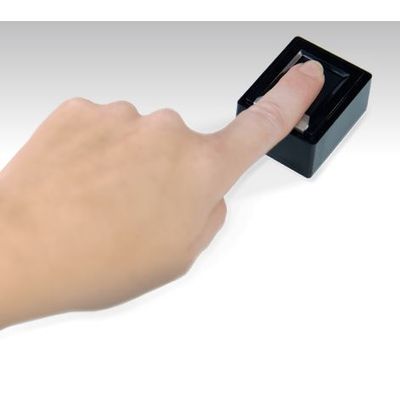

Integrated - Model Columbo 2.0 -Single-Print Scanner
The Columbo and Columbo Desktop are the world’s smallest, lightest, and fastest FBI PIV FAP 30 certified single-fingerprint scanners, producing the highest quality fingerprint images in a small and lightweight form factor. The Columbo is provided with a full featured SDK to enable effective integration into applications requiring certified quality images, meeting the needs for enrollment and verification applications common in international standards based programs. The Columbo and Columbo Desktop are incredibly accurate and much more difficult to spoof than run-of-the-mill competitors, providing a new alternative for unattended verification applications.
< 41 grams (not including cable or bracket)
Platen Size20.32 mm x 25.4 mm / 0.8” x 1.0”
Sensing Area20.32 mm x 25.4 mm / 0.8” x 1.0”
Scanner Assembly Dimensions46.5 mm x 39 mm x 25.7 mm / 1.8″ x 1.5” x 1.0”
- Rapid dry finger capture
- No need to clean latent prints in high-volume situations
- Easy integration via single SDK for all Integrated Biometrics FBI-certified products
- Unaffected by extreme temperatures, direct sunlight, or bright artificial lights
- Compact, lightweight, and rugged
- Rejects common spoofing attacks
- Emits no bright lights during scans
- Meets or exceeds US military durability specifications
- Competitive pricing
- Extremely low power consumption
- Eliminates consumables (silicone membranes or cleaning tape)
- Lower maintenance costs
Windows Desktop Editions 7, 8, 10, 11
Linux Kernel 4.0 or newer (32/64 bit, ARMv6, ARMv7)
- Ubuntu 18.04, 20.04 or newer
- Debian 10, 11, or newer
Android 10, 11, 12
CPUx86 and x64 | 2.0GHz or higher ARM | 1.0 GHz or higher
Memory512MB or higher
LES
CameraCMOS
Resolution500 ppi
Grayscale256 grayscale dynamic range
Image Size400 x 500 pixels
Supported Image FormatsRAW, JPEG2000, BMP, PNG, WSQ (FBI-approved)
N/A
FBI / Image CertificationsPIV 071006, FIPS 201, FAP 30 / Certified to Mobile ID Requirements
SpeedMin frame rate > 10FPS, slaps and rolls
API InterfaceCapture single finger, multi-device / multi-thread support
Quality ScoringNFIQ v1 supported on all OSes and NFIQ2 for Windows
USB 2.0
Power SourceUSB Host
USB Voltage Level4.4V to 5.25V
USB-IF USB.ORG
FCC/CE ConformanceFCC Part 15 (per ANSI C62.4:2003) Class A, CSA ICES-003 Class A, CE Emissions: EN55022:2006 Class A, CE Immunity EN 55024:1998/A1:2001/A2:2003, IEC61000-4-2
Air Discharge / Contact DischargeIn compliance with IEC 61000-4-2
Equipment SafetyIEC 60950-1
Hazardous MaterialRoHS Directive 2002/95/EC
Vibration TestPer Mil-STD-810F (Method 514.5), Category 24, Flg.514.5C-17
- iBeta ISO 30107-3 Compliant
- MOSIP L1 Compliant
-10°C ~ +55°C / 14°F ~ 131°F
Humidity30~85% RH < 40°C / 104°F (Non-condensing)
Storage Temperature-40°C ~ +80°C / -40°F ~ 176°F
IP65 Sealed bezel to scanning surface
Surface DurabilityMIL-C-675c 4.5010, MIL-STD-810F
Cleaning & SanitizationFor proper cleaning and disinfection of IB products, visit
/cleaning
Based on 200 full single-finger enrollments per day, the Columbo MTBF is 66 years.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by Integrated Biometrics could void the user’s authority to operate this equipment legally under FCC regulations.
