Integrated - Model Kojak -10-Print Roll Scanner

SHARE

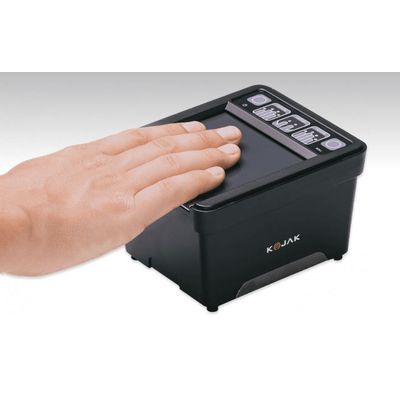

Incredibly small and incredibly accurate, our Kojak 10-print roll scanner features an intuitive ergonomic design, weighs less than 725 grams (1.6 pounds), and scans four flat prints and single finger rolls. Kojak is impervious to latent prints and functions with both dry and dirty fingers, without the need to apply hand lotion. As with our other industry-leading scanners, Kojak performs in direct sunlight with an easy-to-read LED graphic user interface.

Most popular related searches
equipment safety
hazardous material regulations
vibration test
RoHS regulations
hazardous materials
biometric
membrane cleaning
CMOS camera
safety system
disinfection system

FASTER

  • Rapid dry finger capture
  • No need to clean latent prints in high-volume situations
  • Easy integration via single SDK for all Integrated Biometrics FBI-certified products

BETTER

  • Unaffected by extreme temperatures, direct sunlight, or bright artificial lights
  • Compact, lightweight, and rugged
  • Rejects common spoofing attacks
  • Emits no bright lights during scans
  • Meets or exceeds US military durability specifications

SMARTER

  • Competitive pricing
  • Extremely low power consumption
  • Eliminates consumables (silicone membranes or cleaning tape)
  • Lower maintenance costs

OS Support & System Requirements
OS Support

Windows Desktop Editions 7, 8, 10, 11
Linux Kernel 4.0 or newer (32/64 bit, ARMv6, ARMv7)

  • Ubuntu 18.04, 20.04 or newer
  • Debian 10, 11, or newer

Android 10, 11, 12

CPU

x86 and x64 | 2.0GHz or higher ARM | 1.0 GHz or higher

Memory

512MB or higher

Images & Capture
Sensor Type

LES

Camera

CMOS

Resolution

500 ppi

Grayscale

256 grayscale dynamic range

Image Size

1600 x 1500 pixels

Supported Image Formats

RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved)

Functions: Touch Buttons

2x programmable touch buttons*

Notifications: Audible & Visual

Built in programmable chime
10x programmable red/green LEDS*
*Not applicable to Kojak PL variants.

Encryption

256-bit AES keys and RSA algorithms

FBI / Image Certifications

FBI Appendix F, FAP 60

Speed

Min frame rate > 8fps

API Interface

Capture with one finger or with multiple fingers; Capture of rolled fingerprints; Multi-device / multiprocessor support

Quality Scoring

NFIQ v1 supported on all OSes and NFIQ2 for Windows

Weight & Dimensions
Product Weight

725 grams / 1.6 lbs (not including cable)

Platen Size

88.90 mm x 80.01 mm / 3.50” x 3.15”

Sensing Area

81.28 mm x 76.30 mm / 3.20” x 3.00”

Scanner Assembly Dimensions

114.7 mm x 131.8 mm x 82 mm / 4.52” x 5.19” x .3.23”

Power & Connectors
Interface

USB 2.0

Power Source

USB Host

USB Voltage Level

4.40V to 5.25V; 4.4via USB; full scanning > 300mA, typical > 250mA

Conformance & Certifications
USB Certification

USB-IF USB.ORG

FCC/CE Conformance

FCC Part 15 (per ANSI C63.4: 2014) Class B, CSA ICES-003 Class B, CE Emissions: EN 55022:2010 Class B, CE Immunity EN 55024:2010/A1:2001/A2:2003, IEC 61000-4-2

Air Discharge / Contact Discharge

In compliance with IEC 61000-4-2

Equipment Safety

IEC 62368-1

Hazardous Material

RoHS Directive 2002/95/EC
TSCA
Proposition 65
Canada Prohibition

Vibration Test

IEC 60068-2-64

Compliance/Certifications
  • Fingerprint Template Output Formats
    • ISO_19794_2_2005/2011, ISO_19794_4_2005/2011
    • ANSI_INCITS_378_2004/ANSI_INCITS_381_2004
  • 500 PPI fingerprint capture supporting rolls and flats
  • ISO 9001:2015
  • iBeta ISO 30107-3 Compliant
  • MOSIP L1 Compliant
Temperature & Humidity
Operating Temperature

-10°C ~ +55°C / 14°F ~ 131°F

Humidity

10~95% RH < 40°C / 104°F (Non-condensing)

Storage Temperature

-30°C ~ +60°C / -22°F ~ 140°F

Surface & Systems
Ingress Protection / Water / Dust

IP65 Sealed bezel to scanning surface

Surface Durability

MIL-C-675c 4.5010, MIL-STD-810F

Cleaning & Sanitization

For proper cleaning and disinfection of IB products, visit
/cleaning

Mean-Time Between Failures (MTBF)

Based on 200 full 10-print flats enrollments per day, the Kojak MTBF is 22.2 years.

Compliance & Regulations
FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by Integrated Biometrics could void the user’s authority to operate this equipment legally under FCC regulations.
