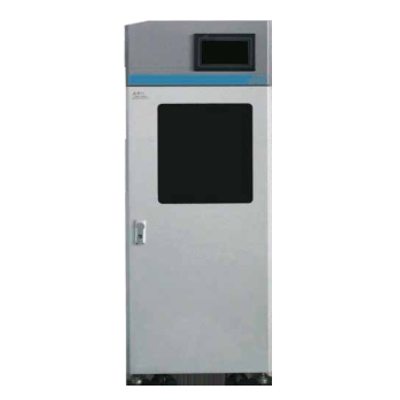

Zetian - Model WDet-7000 -Integrated Water Quality Online Automatic Analyzer

• Using a new measurement technology to solve the problem of inaccurate measurement of watersamples such as large color turbidity, many suspended solids, and many bubbles
• Single-channel highly integrated valve island technology, easy to clean and disassemble, low cost and low maintenance
• Light intensity compensation algorithm, effectively solve the long-term drift problem of field instruments
• Extensible function of over-standard sample retention to retain samples with abnormal data for manual analysis
• Each module has independent sampling, digestion and measurement functions without cross-inter-ference

Title: Val

• Measuring pinciple: Colorimertric, phenate or salicylate method
• Measurement Parameter: COD, Ammonia Nitrogen, Total Phosphorus, Total Nitrogen, some heavy metals, other parameters can be customized
• Measuring range: 0-10/50 mg/L N-NH3 (other measuring range can be selected)
• Accuracy: ± 5%
• Repeatability: ≤ 5%
• Digestion Time: Can be set according to the actual water sample onsite
• Reagent Dosage: Standard reagents can make 400 samples
• Resotution: 0.2
• Working Environent: 5℃~45℃, <85%RH
• Power: 200W (220 ± 10%VAC 50Hz), excluding water pump
• Measurement Interval: Point measurement, interval measurement, and measurement can also be started through the serial port
• External Interface: Analog output: 1 channel 4-20mA output (expandable to 2 channels), maximum load 500Ω
• Analog input: 1 channel 4-20mA input (expandable to 2 channels), compatible with 0-5V input
• Relay output: 4 channels, flexible configuration
• Communication Interfae: RS485/RS232/USB interface (optional)
• Response time (measurement cycle): ≤ 30 minutes; Measuring cycles: programmable
