VJX Crucible - Model IXS0520 -Integrated X-Ray Source for Inspection and Quality Control

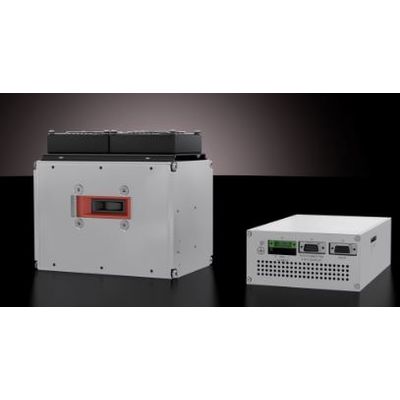

The IXS0520 Integrated X-Ray Source by Crucible is a comprehensive solution designed for a variety of inspection and quality control applications. It encompasses an X-ray tube, a high-voltage inverter, a filament supply, and a heat dissipation component, providing a streamlined and reliable X-ray source. Operating with a maximum output of 50kV and 200W, it features a focal spot size of 0.4mm to 0.8mm and offers beam angles of 80º fan and 25º cone. The compact and lightweight design of IXS0520 allows for seamless integration into existing systems, while its localized radiation shielding minimizes the need for additional protective measures, thus reducing costs and enhancing system durability. It functions efficiently within an input line range of 110-220VAC ±10%, 50/60 Hz, and maintains radiation levels under 0.5 mR/hr at 5 cm per FDA standards. The product is ideally suited for baggage inspection, food quality control, foreign contaminant detection, industrial non-destructive testing (NDT), and people screening, ensuring precision and safety across diverse sectors.
