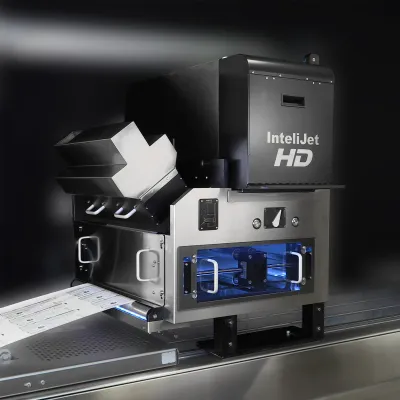

BELL-MARK - Model InteliJet HD servo WAS -InteliJet HD High-Speed Printing System

Piezo Drop on Demand digital printer will print all artwork including variable information. Available Single color, Two color, and Full CMYK configurations allow limitless print capabilities for existing and future business. UDI compliant print solution that can be retrofitted to existing packaging machines. LED Curable or Water Based Inks for printing on most substrates. 600 X 600 DPI Print Head. Each Monochrome Print Head is 108mm wide, 105mm when stitched. Each CMYK Print Head is 112mm wide, 108mm when stitched. Lowest cost of ownership compared to other printing systems. Connect to customer ERP systems and through a hot folder, can utilize existing label software like Prisym, Labelview, Bartender, and more.

• Print widths from 108mm up to 630mm wide
• Print speeds up to 150M/min
• UV cured ink, water-based dye and pigmented inks, or MICR ink
• Instant start up and instant shut down
• UV curable inks for superb print quality on any substrate including poly, foil, medical paper, Tyvek^®, etc. Can even print on the seals with no adverse effects to the print or the seal gasket
• LED lights for ink curing reduce energy consumption, have extremely small footprint, and have no hazardous by-products
• 600 DPI print heads print completely legible fonts at 3-point font size including Asian characters
• Network capable
• Completely programmable with auto date calculations, barcodes on porous substrates
• Built in barcode width reduction feature for high quality barcodes on porous substrates
• 208V 3-Phase 30A
• Remote Service Capable

Print Head Module

• Up to 12 print heads
• Up to 630mm of effective print width
• 600 DPI printhead
• UV ink compatible
• 4 drop sizes (6, 7, 11, 14 pL)
• Full color CMYK printing

Integrated Ink System

• Unique BELL-MARK Design

Web Advance Module

• Web shuffle mechanism facilitates instant curing even when mounted on an intermittent motion host machine
• Intelligent servo motor provides precise closed loop positioning for accurate print registration

UV Curing System

• Allows for printing on almost all surfaces
• LED technology for long life and reduced power consumption
• Ozone free operation (no external venting required)
• Air-cooled, requiring no external compressed air or water for operation

Print System Controller

• Advanced control of every aspect of the print and print head
• Multi-head support
• Multi-resolution support
• High speed print driver
• Full feature render engine
• High speed variable data rip engine
• Full control of print head heater temperature
• Full control of print head grey levels

Print Control and Layout Software

• BELL-MARK layout / label creation tool featuring the following specifications:
• • Multi-image importation, resizing and rotation
  • Step and repeat function
  • Supports all the most common file types (BMP, TIF, JPG, PNG, GIF, PDF)
  • Supports all types of variable information (text, barcodes, date codes, serialization)
  • Supports text file and user entry data sources
  • Supports over 80 types of barcodes including:
  • • GS1-128, GS1-DataMatrix (2D)
    • EAN 13, EAN 8, EAN 14
    • Code 39, Code 128
    • UPC A
    • SSCC18
    • PZN
    • QR-Code
