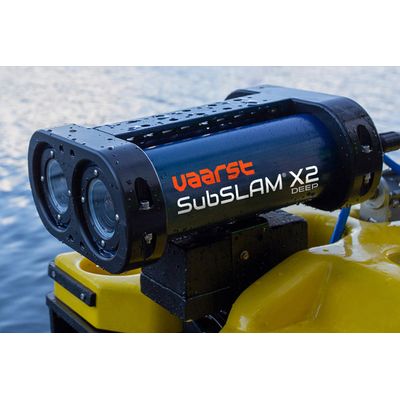

Model SubSLAM X2 -Intelligent Data Collection System
SubSLAM® X2 is the first real-time intelligent data collection system that delivers underwater live 3D point clouds and navigation with sub-millimetre precision. Now available through our technology offering, deployable from any ROV around the globe. SubSLAM® X2 tracks relative position perfectly without relying on any other external sensor such as USBL, LBL or INS, completing measurements in a fraction of the time. Live 3D data can be streamed to any device anywhere in the world, using Ocean Insight, our intelligent online data delivery platform. This allows onshore engineers to track progress, spot issues and react proactively during an offshore campaign from their own offices. SubSLAM® X2 captures and creates next–generation data. Equipped with machine vision sensors and fast onboard processors.
Operators can be more reactive to potential issues while a campaign is still underway, providing stakeholders with confidence that their projects are proceeding safely and to plan.
- Shorter project durations, reducing vessel days
- Enables Machine Learning and AI at the edge
- Perfect relative positioning without USBL, LBL or INS
- Live 3D reconstructions with proven <1mm accuracy
- Instant 3D data streamed to any device anywhere
- No additional sensors or scale bars required
| Mechanical | |
| Length | 359 mm |
| Width | 247 mm |
| Height | 140 mm |
| Weight In Air | 12 kg |
| Weight In Water | 0.7 kg |
| Materials | 316 stainless steel, aluminium |
| Electrical | |
| Power Input | 18-75 VDC, 80W |
| Interfaces | Single data pair or 4-wire Ethernet for live stream |
| Environmental | |
| Operating Depth (Deep unit) | 2000msw (other depths available on request) |
| Temperature Operating | 0 to 40°C |
| Suitable Remotely Operated Vehicle (ROV) | Any 24V or 48V system with spare twisted pair or ethernet availability to surface. Mojave, Falcon, Cougar, Leopard and Magnum vehicles have been tested to date. |
