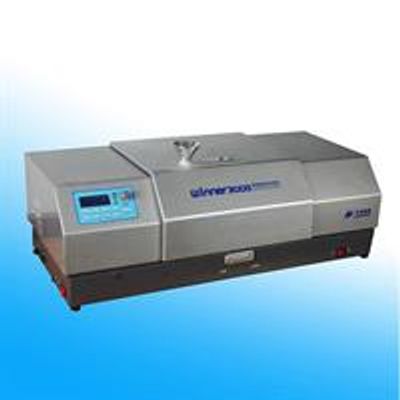

Winner - Model 3005 -Intelligent Full Automatic Laser Diffraction Particle Size
Winner3005 is intelligent dry laser particle size analyzer, manual and full automatic operation modes. MIE scattering principle as basic, Converging light Fourier transform light path, Highly stable HeNe laser and High sensitive ring photoelectric detector, guarantee good repeatability and accuracy. It use air as dispersion medium, and use turbulent dispersion principle with High precision feeding device, patent powder spray pump and oil-free silent gas source guaranteeing the samples to be fully dispersed. It’s fit for any dry powder chemical materials, especially the powder that takes chemical reaction with water or changes its shape in liquid. Compared to the wet laser particle size analyzer, It’s with the same accuracy and repeatability. It`s priority choice for lab equipment in university etc. research departments.
1) Advanced testing light path. Converging light Fourier transform light patented technology, makescattering light not be restricted to lens aperture. Use main detector and large angle auxiliary detector efficiently collect all angles of scattering light in the testing range, ensure good testing accuracy and reliability in the whole range.
2)Scientific dispersion system Turbulence dispersion patented technology and Normal shock shearing effect, make particles sufficient dispersion, Adopt wearable ceramics improve dispersion system’s working life.
3)Human-based operation mode Manual and Full automatic, easy choose.
4)High precision-automatic Three dimension light path alignment system It’s composed of precise four phase hybrid stepper motor, Its inching precision is reach to 0.01 μm level, so light path is always in a good state.
5)Intelligent data analysis Analysis software collect large quantity of particle information in high speed, and inverse particle distribution by unconstrained free fitting technology, then intelligent statistics and analysis of testing data, ensure accuracy and repeatability of the output.
6)The results not only show particle distribution,the cumulative value curve and typical particle sizes( D10, D50, D90.), but also support user-defined analyze result, such as any features particle diameter from D0 to D100,Cumulative percent(greater than or less than a certain particle diameter).
7)Users can design the test report output and display forms according to industry requirements.
Winner3005 is widely used for cement, ceramic, medicine, dope, dye, padding, chemical products, catalyst, braize, dust, additive, pesticide, explosive, graphite, photosensitive material, fuel, metal and nonmetal powder, calcium carbonate, kaolin and other powder materials.
It has unique applicability and practicability, especially for those occurs chemical reactions, change shapes and loss in liquid, such as Chinese herbal medicine, magnetic materials and powder industry with wide distribution and large particle size.
