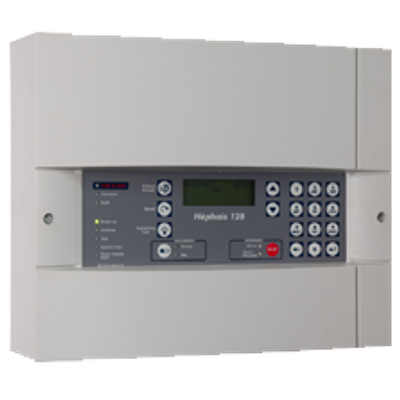

Sd³ - Model HEPHAIS 128 -Intelligent/ Interactive Compact Control Panel
Intelligent/interactive compact control panel, 128 addresses, 2 loops or 4 spur circuits (open circuit with max 32 addresses), 99 ZONES, 1000 memory events, 1 monitored sounders line + 5 programmable output relays, 1xRS232 serial output for printer or remote control panel, 2 programmable inputs. The panel can be set by keyboard or software. Needs 2 internal batteries 12V/7Ah. EN54-2, EN54-4, CE according to CPD.
Field configuration, self learning or manual setting constitute very useful start up modes which make HEPHAIS 128 installation a quick and sure operation. The software TELEHEPHAIS128 (upload/download data) permits to configure advanced functionalities and manages all the capacities of the panel up to 99 zones and 99 groups of command.
128 ADDRESSES,
- 2 loops or 4 spur circuits (open circuit with max 32 addresses),
- 99 ZONES,
- 1000 memory events,
- 1 monitored sounders line + 5 programmable output relays,
- 1xRS232 serial output for printer or remote control panel, 2 programmable inputs.
The panel can be set by keyboard or software. Needs 2 internal batteries 12V/7Ah.
EN54-2, EN54-4, CE according to CPD
- 2 loops (128 addr./loop) or 4 open circuits (32 det./line)
- 99 zones, 99 groups of command
- 1000 memory events
- Pre-alarm mode, day/night mode
- Manual/automatic activation of sounders line
- 2 programmable inputs + 5 programmable relay outputs
- Very easy to program and install
- Self-learning of detectors on the loop
- Programmable by keyboard or software downloading/uploading
- 4 lines, 40 characters LCD display
