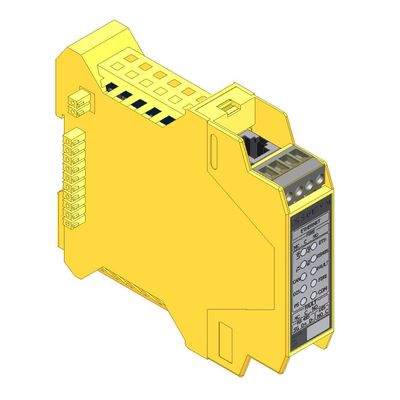

Consilium - Model CS-SAFETY M H -Interface Module and Data Collector

The CS-Safety M H module is intended to be used as a part of a fire or gas detection system and is suitable for use in SIL 1 and SIL 2 environments.

The CS-Safety M H is an interface module and data collector for all CS-Loop M H modules in a fire detection system designed to comply with the standards for the industrial, maritime, offshore and rolling stock markets up to Safety Integrity Level 2
(SIL 2).

The CS-Safety M H supports both single and redundant setups

• An xFire signal input
• An SSP bus for communication with the CS-Loop M H and other CS-Safety M H modules
• Two redundant 24 VDC power inputs
• Three relay outputs reserved for signaling the fire, fault and disablement condition
• An Ethernet interface for external protocols (SSPxt)

For details on assembling a system and definitions of common system terms, please see the Installation & Commissioning manual.

The CS-Safety M H module consists of two products, the CS-Safety M and the CS-Housing H, which can be ordered separately as spare parts.
