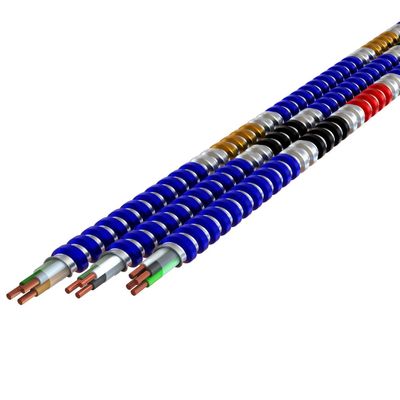

American-Pipe - Model Type MC-Tuff -Interlocked Lightweight Galvanized Steel Armor Cable
MC Tuff is a lightweight, high-strength Type MC Cable with blue galvanized steel interlocked armor that features ColorSpec ID/ColorTrak ID for easy identification. MC Tuff cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.
Most popular related searches
Brands Available:
- AFC Cable Systems, Kaf-Tech
- Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.
- ColorSpec® ID/Color-Trak ID System. Lightweight blue galvanized steel armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type.
- Handling. High strength, lightweight galvanized steel armor allows for easier storage & handling.
- Redundant Grounding. For applications requiring isolated, redundant, or dedicated grounding conductors. Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request.
- Connector. May be used with set-screw connectors UL listed for use with MC cable
- Made in USA of US and/or imported materials
Armor Material
Interlocked Galvanized Steel Strip
Conductor Materials
Solid or Stranded Copper
Conductor Insulation Material1
THHN
Assembly Covering
Polypropylene Tape
Grounding Conductor Detail
Green Insulated Copper Grounding Conductor
Neutral Conductor Detail
White 120/208V Gray 277/480V
Max Temperature Rating Dry C
90
Max Temperature Rating Dry F
194
Max Voltage Rating
600V
Standards, References, & Ratings
- UL 83, 1479, 1569, 1581, 2556, File Number: E80042
- PROP65 - Warning use caution and ventilation when cutting or performing hot work-Cancer|www.P65Warnings.ca.gov
- NEC® 210.4(B), 230.43, 300.22(C), 330, 392, 396.10(A), 501, 502, 503, 504, 505, 520, 530, 645
- UL Classified 1, 2, and 3 hour through (Fire) penetration product, R14141
- U.S Design Patent No. D935,731, U.S Design Patent No. D996,374
- NEC® 300.22(C) Environmental Air Handling Spaces (Plenum)
- Cable Tray Rated, install per NEC®
- Federal Specification A-A-59544 (formerly J-C-30B)
- Meets all applicable OSHA and HUD Requirements
