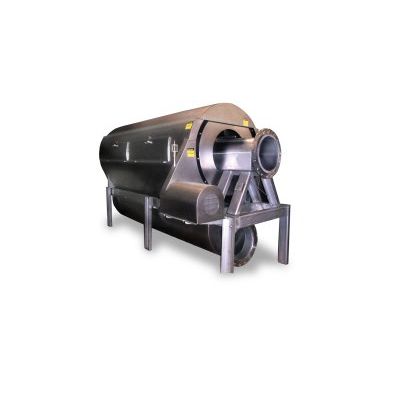

TurboDrum - Model IF -Internally Fed Water Drum Screen
The TurboDrum IF is an internally fed drum screen which offers a cost effective way to treatment challenges such as hair, fibers and suspended material from industrial applications or municipal wastewaters where they sometimes operate at near nominal flow capacity due to high fiber concentration in the solids load. These fibers agglomerate and absorb grease as they tumble towards the discharge end of the screen, cleaning the openings, allowing liquid to drain, and enhancing the effectiveness of the rotary screens dual spray wash system.
Product Highlights Of The Turbodrum IF Internally Fed Drum Screen
- 304 or 316 stainless steel wetted parts
- 0.5 to 4 mm wedgewire or 2 - 6 mm perforated plate
- Dual spray screen washer system
- Adjustable speed control
- Internally fed drum screen
- Dual discharge inlet headbox
- Solid helicoid arranged discharge blades
- Wedgewire slot transversal to flow
- Drum screen handles flows up to 3000 m3/d or 19 mgd
Optional Equipment
Screwpactor:the screened sewage solids are easily pressed to moisture contents of 80% or less, significantly reducing their volume and making them easy to transport.
TurboWash™agitator can be added to the influent opening of the drum screen, creating a highly turbulent mixing regime.
Municipal Applications
- MBR fine screens
- Package treatment plants
- Piped influent applications
- Process screening
- Sludge dewatering
- Sludge thickening
Industrial Applications
- Tanning
- Meat processors
- Fish farms
- Food processors
- Rendering plants
- Pulp and paper plants
