HNL-Global - Internally Reinforced System

SHARE

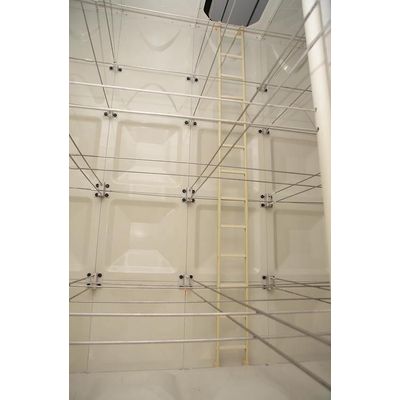

FINETANK - GRP Sectional Tanks basically adapt the internally reinforced system, which ensures the better reliability and robustness.  As an option, externally reinforced system which has no internal reinforcements also can be applied according to project`s requirement.

Most popular related searches
stainless steel pipe
float valve
water storage
FRP ladder
GRP tank
water storage tank
chamber valve
manhole
safety regulations
pipe flange

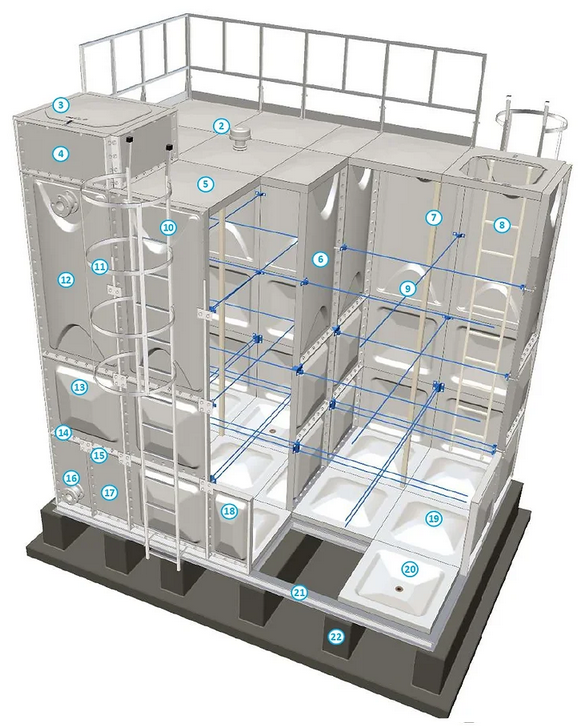

  1. Safety guardrail with kick plate : Hot dipped galvanized steel
  2. Mushroom shape air-vent with PE mesh : ?50 or ?100
  3. Manhole with a lockable cover (?850) : Dust proof
  4. Float valve chamber : 1mL*1mW*0.5mH / 2mL*1mW*0.5mH
  5. Roof (Convex) : Hot press molded GRP panel (1m*1m)
  6. Partition panels : To divide the tank into multi compartments
  7. Roof support : Pultruded FRP
  8. Inner ladder : Pultruded FRP
  9. PE coated tie-rods : Stainless steel 304 or 316
  10. External Ladder : HDG Steel or Stainless Steel
  11. Safety hoop : HDG Steel or Stainless Steel
  12. Wall : Hot press molded GRP panel (2m*1m)
  13. Wall : Hot press molded GRP panel (1m*1m)
  14. Assembly bolts : M10 / 12 / 14
    1. Inside : Stainless steel 304 or 316
    2. Outside : HDG Steel
  15. External reinforcement members : HDG Steel
  16. Piping nozzle : BSP or Flanged connections are available.
  17. Wall : Hot press molded GRP panel (0.5m*1m) – Flat
  18. Wall : Hot press molded GRP panel (0.5m*1m)
  19. Bottom (Convex) : Hot press molded GRP panel (1m*1m)
  20. Drain (Concave) : Hot press molded GRP panel (1m*1m)
  21. Base frame :  Hot dipped galvanized steel
  22. Foundation : Concrete plinth with interval of 1m span
