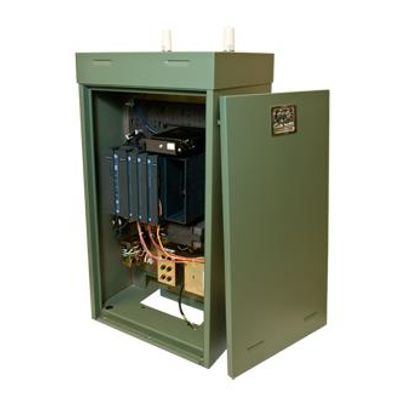

Interspec - Model IRRInet-ACE -Field Control Unit
New generation field unit expanding the IRRInet family of products providing versatile expandable solutions The IRRInet ACE allows the integration of existing and new IRRInet systems using powerful communication capabilities via numerous types of media: radio, cellular, Wi-Fi, wire line etc. The Modular design of the IRRInet-ACE provides large scalability and powerful field units to the IRRInet family of solutions. Greater installation flexibility is provided with support of 3rd party sensors and PLC units as well as multiple communication options including broadband data over TCP/IP, radio, cellular and wire line.
Input and Output Capabilities
Up to 8 input and output modules may be connected to the IRRInet-ACE:
- Digital inputs (8 and 32)
- Outputs (16 and 32)
- Analog inputs and outputs (8 and 16) and variety of mixed I/O modules.
- Connection to PIU units (Piccolo XR Interface Unit)
- 2-Wire Decoder System
Communication Ports
- Port 1 (optional plug in) – Ethernet 10/100 Mb/s, Radio, RS232, RS485
- Port 2 - Configurable RS232 /RS485
- Port 3 - RS232
- Port 4 - Ethernet 10/100Mb/s
- Port 5 - (optional plug in)) Radio modem, RS232, RS485 or Ethernet 10 Mb/s
Piccolo XR Connectivity
- The IRRInet ACE may be connected to a PIU (Piccolo-XR Interface Unit) and activate Piccolo XR RTUs
ACE Capabilities
- 400 Outputs
- 500 Inputs
- 250 Main lines
- 400 programs
- 400 groups
