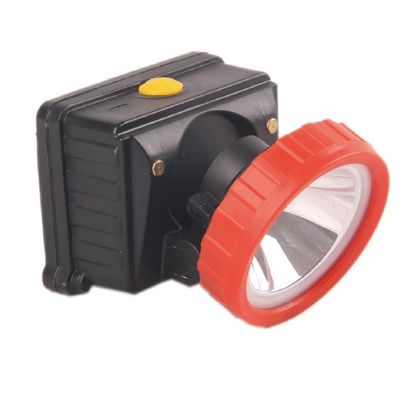

ASTTAR - Model KL3LM(A) - Intrinsically Safe Integrated Miner’s Cap Lamp

SHARE
1. LED constant current driving mode, it ensures the illuminance keep the same during the lighting. 2. Equipped with built-in micro controller and multiple safety protection circuit, with intelligent management of charge-discharge process, it is safe and reliable. 3. It is dual light source design, which can be one-key switched in five modes: bright light, low light, auxiliary light, strobe and SOS. 4. It has the characteristics of battery power indication, freely adjusting the angle of lamp head, and various ways of wearing.

Item   Specification


Battery type:Li-ion
Rated capacity:3Ah
Rated voltage:3.7V
Lighting time>12h
Main light source

Rated current:200mA±10mA
Maximum illuminance( at 1m away from lamp)
When lighting begins≥4500lx
After lighting for 11h≥4500lx
Cycle life of battery≥500 cycles
Charging time≤6h
Explosion proof type:Ex ia I Ma
Protection grade:IP65
Dimensions:84×68×73mm
Weight≤200g
