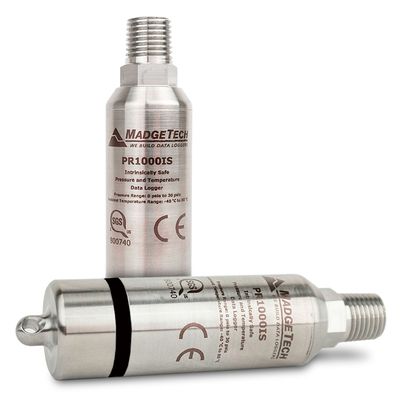

MadgeTech - Model PR1000IS -Intrinsically Safe Pressure and Temperature Data Logger
The PR1000IS an intrinsically safe, temperature, pressure and transient pressure data logger. This device comes standard with a common ¼ in. NPT fitting and is available in models ranging from 30 to 500 PSI. The PR1000IS can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C.
The PR1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
PR1000IS is certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D.
The PR1000IS is an intrinsically safe, pressure and temperature data logger with NPT fitting. Includes ISO17025 accredited calibration certificate.
Key Features:
- Intrinsically Safe
- ¼ Inch NPT Fitting
- Available in 10 Measurement Ranges
Availability: 5-7 Business Days
The PR1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
PR1000IS is certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D.
General
- Memory: 1,396,736 readings
- Reading Rate: 1 reading every second up to 1 reading every 24 hours, Up to 128 Hz in transient mode
- Battery Life: 1 year
- Material: 316 Stainless Steel/Radel
- Dimensions: 3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.)
- Submersible: Yes
- Operating Environment: 40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
- Required Interface Package: IFC200
- Approvals: CE, IS rated
Temperature
- Temperature Sensor: Internal semiconductor
- Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)
- Temperature Resolution: 1.0 °C (1.8 °F)
- Temperature Calibrated Accuracy:
- ±2.0 °C (3.6 °F) at 0 °C to +50 °C (+32 °F to +122 °F)
- ±4.0 °C (7.2 °F) at -40 °C to -1 °C (-40 °F to +30 °F)
- ±4.0 °C (7.2 °F) at +51 °C to +85 °C (+124 °F to +185 °F)
Pressure
- Pressure Sensor: Semiconductor (strain gauge)
- Pressure Range: 0-30, 0-100, 0-300, 0-500 PSIA/PSIG, 0-1000, 0-5000 PSIA
- Pressure Resolution: See Specifications Sheet
- Pressure Calibrated Accuracy: ±0.5 %FSR; ±0.2 % typical
