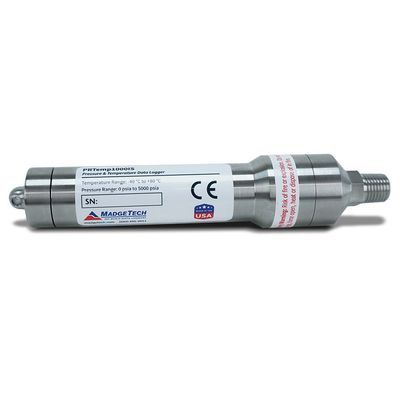

MadgeTech - Model PRTEMP1000IS -Intrinsically Safe Pressure and Temperature Data Logger
The PRTemp1000IS an intrinsically safe, pressure and temperature data logger. This device comes standard with a common ¼ in. NPT fitting and is available in models ranging from 30 to 500 PSI. The internal temperature sensor provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. The PRTemp1000IS can store up to 32,766 time and date stamped readings, and is able to be programmed to start up to 6 months in advance.
The PRTemp1000IS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The PRTemp1000IS is certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D.
The PRTemp1000IS is an intrinsically safe, pressure and temperature data logger with NPT fitting. Includes ISO17025 accredited calibration certificate.
Key Features:
- Intrinsically Safe
- ¼ Inch NPT Fitting
- Available in 10 Measurement Ranges
Availability: 5-7 Business Days
General
- Memory: 32,766 readings
- Reading Rate: 1 reading every 2 seconds up to 1 reading every 12 hours
- Baud Rate: 2,400
- Battery Life: 1 year
- Material: 303 stainless steel
- Dimensions: 6.4 in x 1.25 in dia. (163 mm x 32 mm)
- Submersible: Yes
- Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
- Required Interface Package: IFC200
- Approvals: CE, IS rated
Temperature
- Temperature Sensor: Internal semiconductor
- Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)
- Temperature Resolution: 0.1 °C (0.18 °F)
- Temperature Calibrated Accuracy: ±0.5 °C (±0.9 °F)
Pressure
- Pressure Sensor: Semiconductor (strain gauge)
- Pressure Range:
- 0 to 30, 100, 300, 500 PSIA/PSIG;
- 0 to 1000 or 5000 PSIA
- Pressure Resolution: See Specifications Sheet
- Pressure Calibrated Accuracy: ±0.5 %FSR; ±0.2 % typical
