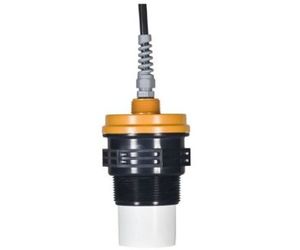

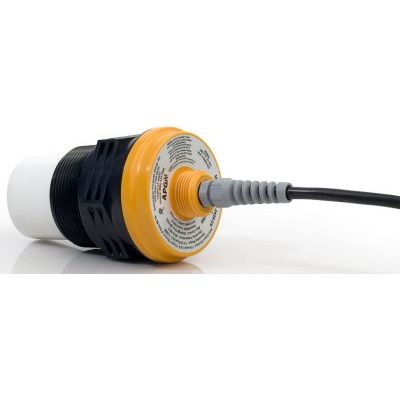

APG - Model Series LPU-2428 -Intrinsically Safe Ultrasonic Level Transmitter with 4-20 mA Output
Hazardous Locations Meet High Programmability. Intelligent and highly configurable. The LPU-2428 can calculate distance, level, flow, and volume in linear and non-linear tanks. Range: Up to 25 ft. Mount: 2 in. NPT. Output: 4-20 mA. Certification: CSA, Class 1, Div 1, Class 1, Div 2, Intrinsically Safe.
With Class 1 Division 1 ratings, the loop powered LPU-2428 is built to handle the most hazardous locations. Add the ability to internally calculate volume or open channel flow data, and you have a unique and powerful ultrasonic sensor.
Programmable Intelligence
The LPU-2428 was made with intelligent software for highly configurable measurement. The sensor can calculate distance, level, flow, and volume. In addition, the sensor features a 32-point linearization table for non-linear tanks and channels.
Class 1, Div. 1
This loop powered sensor is suitable for use in hazardous areas rated CSA Class 1, Div. 1.
Maintenance-Free
With a tough, IP65 rated housing, its hazardous rating, and non-contact measurement, the LPU-2428 takes care of itself.
- Loop powered 4-20 mA output
- Class 1 Division 1, Intrinsically Safe rating
- Built-in calculations of current volume, flow, and flow totals
Performance
- Operating Range
- 1 to 25 ft. for liquids
- 1 to 10 ft. for solids
- Accuracy
- ±0.25% of detected range
- Resolution
- 0.1 in.
- Response Time
- From 0.6 to 3 sec. (programmable)
Programming
- Method
- RST-4001 Programming Module
- Calculations
- Distance, Level, Volume, Flow
- Tank/Channel Adjustments
- 32-point linearization table
Electrical
- Supply Voltage
- 12 to 28 VDC (loop current 4-20mA)
Physical
- Housing
- PVDF (Kynar) transducer housing & threads
- PET upper housing
- Mount
- 2 in. NPT
Approvals
- Certifications
- CSA C/US
- Class 1, Div. 1, Groups C & D
- Class 1, Zone 0, AEx ia IIB T3
- Class 1, Div. 2, Groups C & D
- Class 1, Zone 2, AEx nA IIB T6
Connectivity
- Output
- 4-20mA
- Cable
- 2-conductor shielded
- Internet Connectivity
- with RST-5003
Environmental
- Operating Temperature
- -40 to 140° F
- Temperature Compensation
- Internal
- Protection Rating
- IP65
