Intuition - Model cw -Single Zone Heating Control System with Wireless Smart Thermostat

Modules

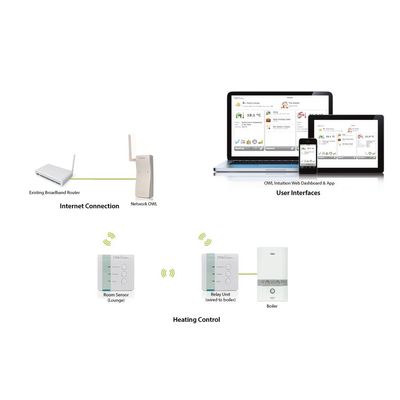

• OWL Intuition-c consists of the following:
• 1x Network OWL Gateway
• 1x Intuition Room Sensor
• 1x Wireless Relay Unit

Options

• OWL Intuition-cw can support the following additions:
• Up to 8 additional Intuition Room Sensors to support additional heating zones (where the heating system has separately controllable zones)*
• Up to 3 additional Intuition Relay Units to support additional wirelessly controlled heating zones (where the heating system has separately controllable zones)*
• Electricity monitoring functionality via a 3-channel Transmitter unit with standard/large sensors (see Electricity Monitors ACCESSORIES tab)*

• Smart thermostat allows web based control of a single heating zone (additional zones can be added - see Options).
• Programmable timeclock and temperature control; which intelligently calculates when to turn on to maximise benefit.
• Replaces existing wired heating controls with flexible wireless modules to fit anywhere in the home.
• Access via mobile device or PC to smartphone app or web dashboard - wherever you have internet. Turn the heating on if you`re coming home early; or turn it off if you`ve left it running.

Technical Specifications:

• Network OWL – 868MHz & 433MHz
• Heating Controls – 868MHz
• Operating range up to 50m (In free space)
• Storage conditions: -25°C to +65°C
• Relative humidity: 25% to 95% non-condensing
• Operating temperature: 0°C to 40°C
• Ingress protection: IP30

Standards Compliance

• IEC 60730-1:2001 / BS EN 60730-1:2001
• BS EN 55014-1:2006+A1:2009
• BS EN 55014-2:1997
• ETSI EN 300 220-1 V2.1.1 (2006-04) / ETSI EN 300 220-2 V2.1.2 (2007-06)
• ETSI EN 301 489-1 V1.8.1 (2008-04) / ETSI EN 301 489-3 V1.4.1 (2002-08)
• R&TTE - WEEE Directive, RoHS, Battery Directive

Includes

• Network OWL Gateway,
• Room Sensor [RBT-3C] (Battery powered, with Comfort (+), Standby & Away buttons),
• Relay Unit [RMT-6C] (Mains powered, with Comfort (+), Standby & Away buttons),
• back plate x 2,
• safety wiring cover x 2,
• 4 x AAA alkaline battery,
• Installation Instructions.
