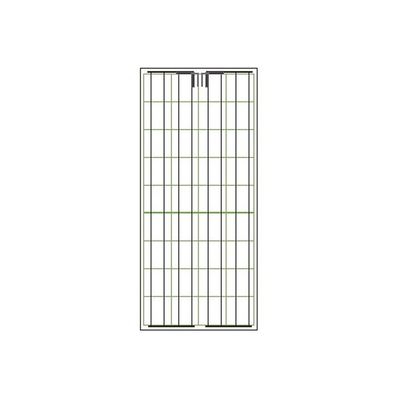

Invensun Sundragon - Model i125-36P -Poly-Crystalline Solar Pane
FromInvensun
Invensun Sundragon Hazardous Grade Solar Panels are certified and built to operate safely where flammable gases, vapour and liquids may be present. Our Hazardous Grade Solar Panels are built tough for extreme weather and heavy-duty applications. With the highest-quality construction, Invensun solar panels guarantees that, year-over-year, you will receive reliable power generation, allowing a greater return-on-investment.
Most popular related searches
cathodic protection system
hazardous area protection
environmental data monitoring
hazardous area
pump system
desalination system
water quality
cathodic protection
environmental data
air monitoring
- Microwave / radio repeater stations
- Railroad signals
- Sailboat charging systems
- Medical facilities in rural areas
- Cathodic protection systems
- Emergency communication systems
- Air monitoring
- Navigation lighthouses, and ocean buoys
- Wireless Data
- Aviation obstruction lights
- Telecom
- Security
- Desalination systems
- Recreational vehicles
- Water quality and environmental data monitoring systems
- Pumping systems for irrigation, rural water supplies and livestock watering
Hazardous Area Protection
- Class 1 Division 2, Groups A,B,C,D : Yes
- Temperature Classification T4 : Yes
Mechanical Characteristics
- Solar Cell Type : Polycystalline Silicon
- Solar Cell Size : 156mm x 156mm
- Number of Solar Cells : 36
- Junction Box : IP-65 rated
- Knockouts : Four 20mm knockouts
- Cable Glands : Lankelec HSK-M20X1.5, Qty:2
- Connectors : N/A
- Diode : 2 bypass diodes
- Front Glass : 3.2mm tempered glass
- Frame : Anodized Aluminum Alloy
- Dimensions L x W x D : 1474 x 660 x 50 mm
- Weight : 12.0kg
Environmental Characteristics
- Mechanical Load : 2400 Pa
- Fire Rating : Class C
- Operating Temperature : -40 to +85ºC
- Electrical Characteristics
- Maximum Power at STC (Pmax) : 125W
- Optimum Operating Voltage (VMP) : 17.78V
- Optimum Operating Current (Imp) : 7.03A
- Open Circuit Voltage (VOC) : 21.56V
- Short Circuit Current (Isc) : 7.60A
- Maximum System Voltage : DC 600V
- Maximum Series Fuse Rating : 15A
- Power Tolerance : ±5%
Warranty
- Product Workmanship : 5 years
- 10 Years : 90% output
- 25 years : 80% output
