Shenzhen INVT Electric Co., Ltd.

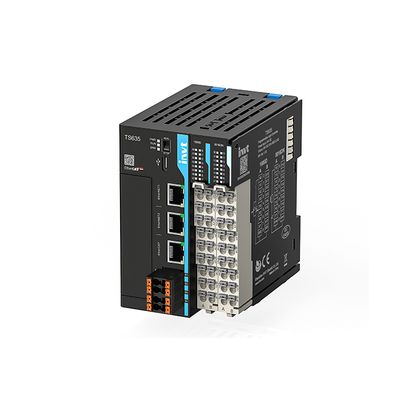

INVT - Model TS600 Series -Intelligent PLC
INVT TS600 series intelligent PLC integrates high-performance embedding technology, and it is based on a high-speed bus system architecture to integrate four types of automation control, namely, sequence, process, information, and motion control, into the same system. It achieves the real-time control and complex calculation through the highly reliable software and hardware real-time system, and provides open communication interfaces, IoT networks, and distributed module system architecture. The completely independent programming software provides customized services, making programming easy.
Most popular related searches
- Running efficiently: 1G main frequency, compile command breakthrough, bit operation speeding up to 0.01us.
- High performance with motion control: High-speed motion control, easily implementing complex processes. Support 4/8 axis pulse control,EtherCAT bus control 1ms 16-axis synchronization,2ms 32-axis synchronization.
- Easy connection: Multi-protocol support facilitates interconnection. Dual-port design, makes cascading easy, and achieves the isolation between the internal network and external network.
- Easy programming: Compliant with IEC61131 programming specifications. supporting the languages LD, SFC, IL and C. The pulse and bus axes are compatible with a set of axis control commands. Supporting graphic configuration through dragging, Easy parameter setup and automatic address allocation. Supporting trace function.
- Easy scalability: Standard configuration of CPU with 8/16 points of Dl and 8/16 points of DO. Compatible with Flex series IO modules for scaling. Supporting 72 EtherCAT slave nodes.
