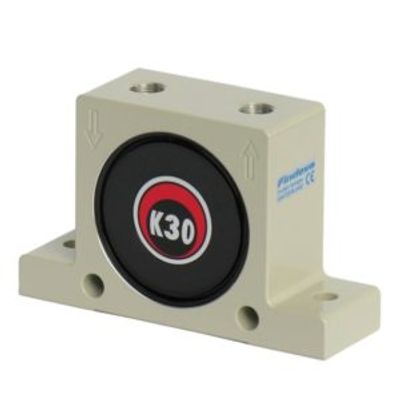

Inwet - Model K-Type -Pneumatic Vibrators

Properties:

• powerful,
• revolutions frequency from 7 300 to 35 000 min-1,
• exciting force from 130 to 4 050 N,
• limited air consumption,
• working temp. up to 100°C,
• max. working temp. 150°C (thermoresistant version).

Construction:

• circular vibrations produced by a steel ball rolling on hardened surface,
• plastic lids protecting from dust and water,
• case fitted with four installation holes – easy to install.

Usual applications:

• condensing or loosening bulk materials in containers,
• fractioning,
• vibrating tables,
• protecting tube or chute walls from material sticking,
• bulk products transportation.
