SIM-Teq, Brand of Radiation Safety & Control Services, Inc.

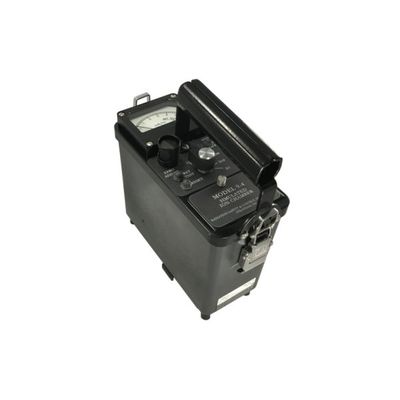

SIM-Teq - Model ICTD 9-4 -Ion Chamber Training Device
Simulates all features and functions of the Ludlum Instruments Model 9-4 Ion Chamber. Built with real Model 9-4 hardware. Provides all device controls including beta window. Responds realistically to changes in dose rate. Supports all fault conditions. Designed for manual or automatic dose rate input.
Most popular related searches
- Power - Two (2) Standard D (LR20) 1.5V Alkaline Battery (Same as Ludlum Model 9-4)
- Battery Life - Up to 8 Hours
- Environmental - Same as Standard Model 9-4
- Wireless Communication - IEEE 802.15.4, IEEE 802.15.4-2011
- Dimensions - 234 x 89 x 216 cm (9.2 x 3.5 x 8.5 in.) including instrument handle
- Display Range up to saturation 0 – 50,000 mR/hr(0 – 500 mSv/h)
- Response performance characterized from real instrument
- Functional 5-range selector switch and light
- Simulated Zero Adjust and Reset push button
- Functional Beta Window with default and user configurable measurement offset
