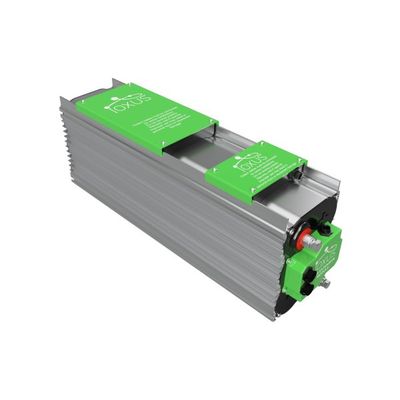

IOXUS - Model iMOD064V125A23 -64 Volt, X-Series Modules
Volume: 19.8L. Cell Size: 3,000F. Number of Cells: 24. Voltage, (V DC), Rated/MAX: 64.8/68.4. Capacitance, IEC (F), Min/Normal: 120/125. DC ES, EIC (mΩ), NORMAL/MAX: 4.8/6.7. DC ESR, 10 mS (mΩ), NORMAL/MAX: 6.0/7.4. AC Impedance, 1kHz (mΩ), NORMAL/MAX: 4.8/6.3. EMAX, (Whr)[Min/Nom]: 69.9/72.9. DC, (10yr, 25°C, @VR) [F/mΩ]: >100/100/112/100/<14.8.
Most popular related searches
- Weight – 52.9 lbs
- Weight – 24.0 kgs
- Length – 626.4 mm
- Height – 223 mm
- Width – 148 mm
- UL 810A Max Operational Voltage(VDC) – 2,000VDC (per series string)
- Hi-Pot(VAC) – 5,000
- Operational Range(OC) – -40oC to +65oC(operational) to -40oC to +70oC(storage)
- Continuous Current(A ), [20o Rise] – Test data available for some. Contact IOXUS
- Current, Short Circuit(A) – 10,000(1,200F), 12,400(2,000F), 13,500(3,000F)
- Current, Peak[1s] (A) – 1,200(1,200F), 1,900(2,000F), 2,500(3,000F)
- Resistance, Thermal(OC/W), [RTH] – Test data available for some. Contact IOXUS
- Terminal Size & Max Torque – M8/20Nm & M10/30Nm
- Safety/Environmental – RoHS, UL810a, Chinese RoHS, IP67
- Shock – IEC 60068-2-27(TA1@25g), ISO 16750-3(4.2.2)
- Vibration – ISO 16750-3(Table 12)
