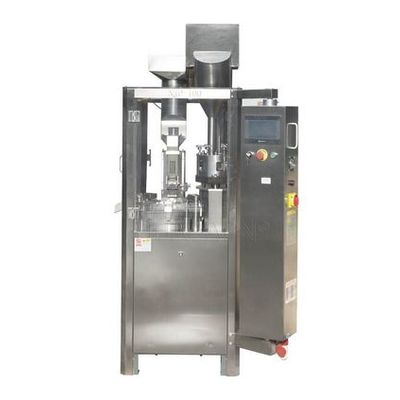

Ipharmachine - Model NJP-400C -Small Automatic Capsule Filling Machine

NJP-400C automatic capsule filler processes the products for optimal productivity up to 400 capsules per minutes, featuring low-maintenance operation, minimal downtime, and overall dependable production. Powder dosing uses the 3 stage tamping technology for an enhanced accuracy. Filling of pellets is available. Capsules from the bunker are fed into the orienting device along the vertical guide. Then they are transferred into special cells on the rotor. Here the capsule is separated, after what the bottom part comes to the filling position. After filling the bottom part with the material, on next positions the non-separated capsules are rejected, and the filled bottom parts are joined with top parts, counted and taken away into the receiving box.

• cGMP design with emphasis in powder dust handling: Enclosed main turn table avoid dust getting into mechanical parts.
• Automatic control for capsule and powder supply.
• PLC control for reliable operation. Touch Screen HMI, featuring user friendly controls: production counter, manual / automatic / parameter setup modes, alarms.
• Precision capsule segments and dosing disk minimizes adjustments following parts changeover.
• SS 304 stainless steel frames and transparent safety interlock guards.

• Machine Model NJP-400C
• Max capacity 24000capsules/hour
• Suit for capsule size 00#-5# and safety capsule
• No.of mould bores 3
• Machine dimensions 750x700x1700mm
• Net weight 700kg
• Power 380/220v,50/60Hz,6kw
• Noise <75dB
