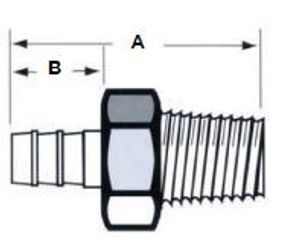

IPS - Tube Barbed Fittings
Pressure Ratings: Performance at ambient room conditions: 120 psi for 1/16” fittings linear decreasing to 80 psi for 3/4” fittings and 60 psi for fittings larger than 3/4`. Performance at elevated temperatures up to 85 ºC/185 ºF: 90 psi for 1/16” fittings linear decreasing to 60 psi for 3/4” fittings and 40 psi for fittings larger than 3/4”. Contact factory for pressure temperature ratings above 85 ºC / 185 ºF.
Most popular related searches
laboratory testing
laboratory testing standard
aluminum anodizing
industrial testing
industrial laboratory
- Fittings:Machined from virgin Polytetrafluoroethylene (PTFE).
- Ferrules:Ferrules are machined from virgin Polytetrafluoroethylene (PTFE).
- Grippers:The Gripper in the two piece Ferrule-Gripper assemblies are manufactured from PVDF.
- Nuts:The “HA” style nuts are molded PVDF. The “TA” style nuts are machined from PTFE and include an external anodized aluminum band. “TS” style nuts are also machined from PTFE but include an external stainless steel band.
Pressure performance ratings are based on laboratory testing, industry standard material characteristics and historical data. A combination of extreme temperature and pressure may affect these products. It is recommended that the user satisfy themselves as to the suitability of these products for their application.
