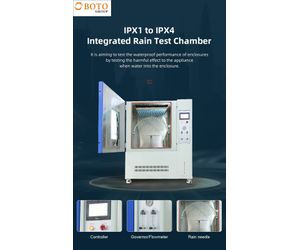

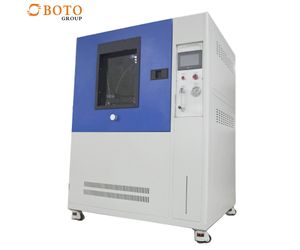

BOTO - Model BT-IPX14B -IPX1 IPX4 Rain Tester Drop Rain Testing Machine Dust Rain Proof Environmental Test Chamber

Products Description

Model

BT-IPX14B-R200
BT-IPX14B-R400

Inner dimension

500L*500D*650H mm
900L*900D*1050H mm

Outer dimension

1000*680D*1400H mm
1350L*1150D*1750H mm

Turntable diameter

￠200mm
￠400mm（R200mm is optional）

Turntable Max. load
50KG
50KG

Turntable lifting height
150-250 mm
450-750 mm

Turntable tiltable angle
0° or 15°（horizontal direction）
0° or 15°（horizontal direction）

Turntable speed
1 -5r/min（precise control ）
1 -5r/min（precise control ）

Turntable rotate
Foreward / Turn back and forth /
intermittent rotation
Foreward / Turn back and forth /
intermittent rotation

Testing time
0-999 min
0-999 min

Total weight
Appro. 230kg
Appro. 230kg

IPX12 technology parameter

Drip plate area
200*200mm
600*600mm

IPX12 Spray aperture
diameter (mm)
￠0.4mm
￠0.4mm

Space of Dripping
aperture
20*20 mm
20*20 mm

Rainfall precipitation
IPX1=1mm/min IPX2=3mm/min
IPX1=1mm/min IPX2=3mm/min

Flow adjust
Manual setting
Manual setting

Drip plate lifting
Fixed
Fixed

IPX34 technology parameter

Swing pipe radius
R200mm
R400mm（R200mm is optional

Swing pipe Flow
IPX3=0.56L/min；IPX4=0.84L/min
IPX3=1.1L/min；IPX4=1.8L/min

Spray aperture size(mm)
0.4mm
0.4mm

Space of Spray aperture
50mm
50mm

Swing pipe inner diameter(mm)
15mm
15mm

Swing pipe angle
120º（IPX3）、350º（IPX4）（precise control or customize)
240°Turn back and forth 4S、720°Turn back and forth
12S（precise control or custom
Swing pipe speed
240º（4s) 720º(12s), or customize
R400mm（R200mm is optional

Electric parameter

Power Supply
220V

Power Supply of samples
220V

Power
1.0KW

Protective device
Leakage, water shortage, short circuit

Standards
IEC60529:1989 +A1:1999 +A2：2013《Degrees of protection provided by enclosures(IP Code)》

IPX1~ IPX4

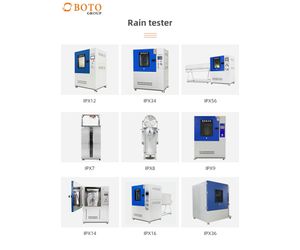

Rain tester

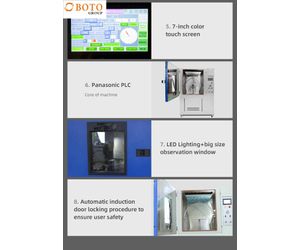

Details display
