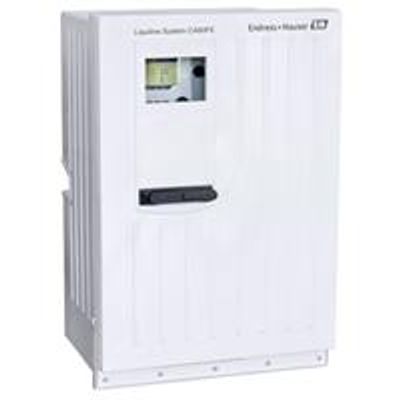

Liquiline - Model CA80FE -Iron Analyzer System
Colorimetric system for monitoring of drinking water, mineral water and process water. Liquiline System CA80FE offers precise, regulation-compliant online measurement. It supports you in controlling the iron content of drinking water, mineral water or source water for industrial processes. Like all Liquiline System analyzers, it enables plug & play of up to four Memosens sensors – minimizing the installation effort. Automatic calibration and cleaning and the low reagent consumption reduce operating costs while advanced diagnostics with remote access ensure process safety.
-
Compliance with standard ferrozine method ensures direct comparability to lab measurements
-
Supports predictive maintenance by advanced diagnostics
-
Reduced operating costs through automatic calibration and cleaning as well as low reagent consumption
-
Easy upgrade of functionality - even to a complete measuring station - simply by adding modules and connecting Memosens sensors.
-
Comfortable remote access via integrated web server
-
Seamless integration into process control systems thanks to digital field busses such as Modbus, PROFIBUS or EtherNet/IP
Liquiline System CA80FE monitors:
-
Iron content in drinking water and mineral water
-
Residual iron after precipitation, flocculation and filtration processes
-
Process water containing diluted iron
-
Measuring principle
Colorimetric
-
Characteristic
Process analyzer for iron in aqueous solutions
Comply with standard colorimetric measuring principle - ferrozine method -
Size
Cabinet
793 x 530 x 417 mm
31.22 x 20.87 x 16.42 in
Stand housing
1693 -
Design
Open design, cabinet and stand housing
High-Performance plastic ASA-PC, additional stand coated steel -
Process temperature
4 ... 40 °C (39.2 ... 104 °F)
-
Ambient temperature
5 ... 40° C ( 41 ... 104°F)
-
Process pressure
at atmospheric pressure, < 0.2 bar
-
Sample flow rate
min. 5ml/min (0,17 fl.oz/min)
-
Consistency of the sample
Suspended solids content
Turbitity < 50 NTU, aqueous, homogenized -
Application
Monitoring of the iron content of potable water, mineral water and source water for industrial processes
-
Power supply
100 ... 120 VAC / 200 ... 240 VAC ± 10%
24 VDC ± 10%
50 ± 1 oder 60 ± 1,2 Hz -
Output
2x 0/4 ... 20 mA
Webserver, Modbus, Ethernet/IP, Profibus DP -
Input
1 or 2 measuring channel
1 ... 4 digital sensor inputs for sensors with Memosens protocol (optional) -
Measurement range
0,05 ... 2 mg/l
0,1 ... 5 mg/l -
Consumables
Reagents and standard solutions CY80FEfor the operation. Regular maintenance is done with the parts of the maintenance kit CAV800.
