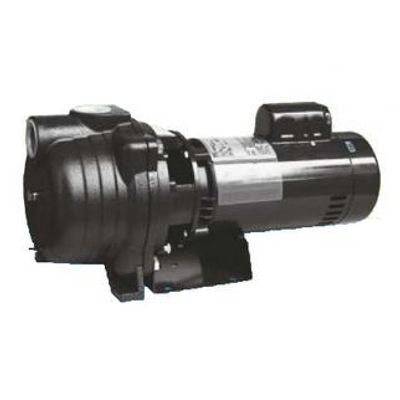

SEI - Model LGT Series -Irrigator Centrifugal Pumps
Specially designed for lawn sprinkling, irrigation, water transfer, dewatering, etc. Once the pump is initially primed, filled with water, it will re prime when the water level rises above the end of the suction pipe. the main characteristics are with high efficiency, high flow and head, tight construction and convenient installation.
Stainless steel shaft
Maximum Medium Temperature: 140 F.
Operating Conditions
- Liquid Temperature: 32°F to +140°F Max.
- Working Pressure: 125 psi
- Ambient Temperature: 104°F
Flow rate: up to 88 USGPM.
Head: up to 130 ft.
Power Range: 0.75HP-1.5HP, 115/230V Capacitor Start 2HP, 230V Capacitor Start
NEMA Standard Single-phase motor with start/run capacitor, 60 Hz, 3450 RPM.
Pump body: cast iron.
Pipe Connections: 1 1/2" NPT suction, 1 1/2" NPT discharge.
Built-in Overload Protector with auto reset.
Rotation: Clockwise when viewed from Motor end
