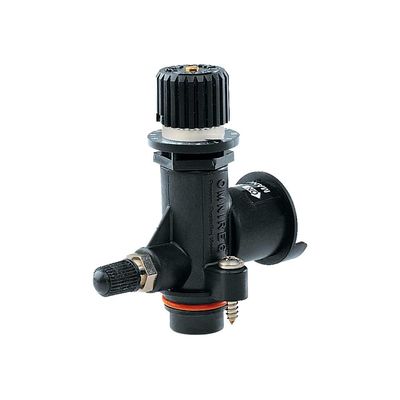

Irritrol Omnireg - Pressure Regulator
The Omnireg pressure regulator is a very useful accessory when you need to maintain the pressure downstream of the system constant. It does not require the use of a pressure gauge and its "visible" vertical position on the valve makes it easy to install and also allows easy adjustment and considerable space saving.
Most popular related searches
- It is installed vertically in the solenoid holder cavity with two screws specially provided *.
- It does not need a pressure gauge as the central selector indicates the outlet pressure in both Bar and Psi
- At the outlet, the desired pressure can be calibrated both with the system stopped and in operation
- It maintains a constant downstream pressure for greater accuracy in low pressure conditions
- It eliminates the need for a double stock of valves
- Accuracy level with a degree of approximation of ± 0.2 bar
* The solenoid is placed in the side cavity of the Omnireg
- Flow rate: 3.8 – 1136 l/min
- Inlet pressure: up to 13.8 bar
- Outlet pressure adjustment:
- OMR-30 model: from 0.35 to 2.1 bar
- OMR-100 model: from 0.35 to 6.9 bar
- A pressure differential between the inlet and the outlet of at least 0.7 bar is required
- The speed must not exceed 2.3 m/sec in order to reduce water hammering
OPTIONS
- “Schrader” connection to allow verifying the programmed pressure
