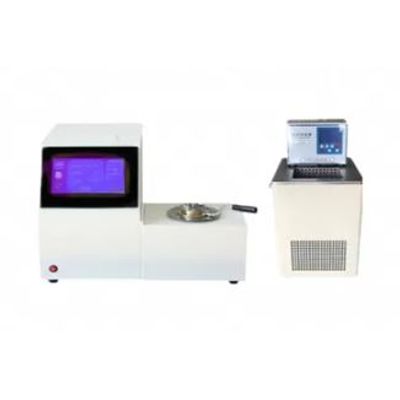

Shengtai Instrument - Model SH21789 -ISO 13736 Automatic Abel Closed Cup Flash Point Tester FOR Petroleum Products
ISO 13736 Automatic Abel Closed Cup Flash Point Tester Petroleum Products With A Flash Point Between - 30 And 70. SH21789 Automatic Abel closed flash point tester is designed and manufactured according to the requirements of the national standard GB/21789 "Determination of flash point of petroleum products and other liquids (Abel closed cup method)" and ISO13736.
Most popular related searches
closed cup flash point testing
closed cup flash point
closed cup flash testing
flash point testing
automatic flash point testing
flash point
flash testing
flash point testing system
Pt100 temperature sensor
temperature sensor
- SH21789A Automatic Abel Closed Cup Flash Point Tester
- Automatic Closed up Flash Point Testing Machine Oil Flash Point Tester Digital Abel Flash Point Apparatus
- ISO13736 Automatic Abel Closed Cup Flash Point Tester
- Automatic Abel Closed Cup Flash Point Tester
- Automatic Abel Closed Cup Flash Point Tester ISO 13736
- It is suitable for the determination of petroleum products and other liquids in the range of -30? ~ 80?.
- Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;
- Abel Fully Automatic Type Closing Cup Flash Point Tester of Diesel Oil
- Color touch screen;
- The test results can be stored;
- You can view historical data;
- Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.
- Applicable standards : GB/T21789, ISO13736 IP170
- Test range : -30? ~ 80? or 0-120? (external circulating cold water bath)
- Temperature detection : platinum resistance (PT100)
- Display mode : 6.4 "TFT LCD
- Cooling method : compressor cycle refrigeration
- Heating rate : 1?/min
- Display accuracy : 0.1?
- Mixing speed : 0.5r/s(30r/min)
- Host power consumption : 1800W;
- Low temperature circulating refrigerator : ≤1200W
- Power supply : AC 220V±10%, 50Hz
- Ambient temperature : ?
- Relative humidity : 0%RH
- Abel flash point size: 490*450*580mm Weight: 40kg
- MODEL : SH21789
- Applicable Standards : GB/T21789, ISO13736 IP170
- Test Range : -30? ~ 80? Or 0-120? (external Circulating Cold Water Bath) :
- Temperature Detection : Platinum Resistance (PT100)
- Display Mode : 6.4 "TFT LCD
- Cooling Method : Compressor Cycle Refrigeration
- Heating Rate : 1?/min
- Display Accuracy : 0.1?
- Mixing Speed : 0.5r/s(30r/min)
- High Light : Automatic Abel closed flash point tester, ISO 13736 Flash Point Tester
