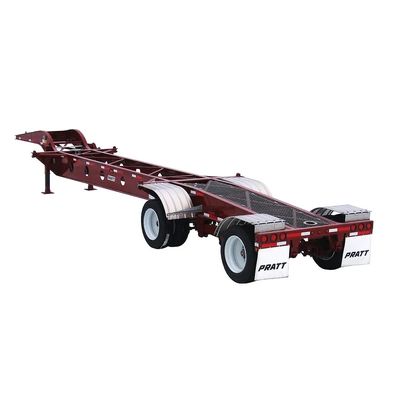

PRATT - Model DC432LS9 -ISO Tank Container Chassis
43` DC-Model `` spread spring ride for 20` ISO Containers. PRATT is known as the leading supplier of tank chassis over any other manufacturer in the intermodal industry. Over fourty-five major bulk carriers and shippers utilize PRATT`s ISO tank chassis. The PRATT drop frame chassis are designed for low deck heights and higher stability. PRATT has a variety of Tank Chassis available in various configurations including but not limited to tandem axle, tri-axle, spread axle, and closed tandem designs. PRATT also offers the ability to transport two 20` ISO Tank Chassis on our Hi-Lo models.
Most popular related searches
DIMENSIONS
- NOMINAL LENGTH 43`
- NOMINAL WIDTH 96"
- KING PIN LOCATION 16"
- FIFTH WHEEL HEIGHT 48"
- REAR DECK HEIGHT 44"
- LANDING GEAR LOCATION 115"
- NUMBER OF AXLES 2
- AXLE SPREAD 109" (TANDEM)
- TARE WEIGHT 7,340 LBS +/- 3%
- FRAME RATING 68,000 LBS
- GVWR 67,000 LBS
- GCWR 80,000 LBS
STANDARD FEATURES
- MATERIAL Main Rails are of ASTM A514 (130,000 psi); all others are of ASTM A572 Grade 50
- MAIN RAILS Fabricated Continuous I-Beam with T1 top and bottom flanges
- CROSSMEMBERS Formed Channel with Continually X-Braced
- KING PIN 1/4" pick up plate with 2" diameter king pin
- LANDING GEAR Two-speed 19" travel w/ RCF
- TWISTLOCKS Pratt Twistlocks
- SUSPENSION Tandem axle 109" spacing w/ three leaf springs
- AXLES 71-1/2" Track, 22,500 LBS each rated
- HUBS Hub piloted Cast hubs
- DRUMS Cast drums
- BRAKES 16-1/2" x 7" quick-change brakes with non-asbestos lining
- WHEELS (8) 8.25" x 22.5" Steel Wheels
- TIRES (8) 255/70R22.5 16 PLY
- BRAKE SYSTEM Valve system for service brakes. 2S/1M ABS system.
- ELECTRICAL 12 VOLT w/modular wiring and plug type connectors and 7-way pin electrical plug for ABS system. Sealed wire harnesses. Sealed grommets and lights.
- METAL PREP All metal surfaces are shot blasted and cleaned. All weld areas shot blasted prior to painting.
- PAINT Zinc Rich epoxy Primer and Blue Urethane top coat
- MISC Conspicuity Striping, 24x21 Pratt Mud Flaps
- FENDERS PVC Fenders
- WALKWAY 8` Galvanized Walkway
