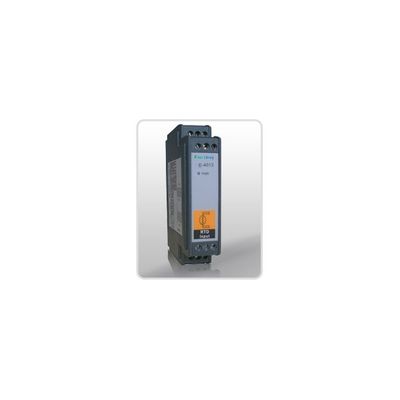

Envitech EnviDAQ - Model 4013 -Isolated RTD Input/Standard DC Signal Output Module
Platinum RTD Input and Nickel RTD Input. Operating Temperature: -20~ 70 Celsius. Linearization Output Range (V or mA). Flexible DIN Rail Installation. 1000VDC Three-way Isolation. LED Indication Power Supply/Signal State. Single-way 24VDC Operation. Humidity: 5% ~ 90%, Non-condensing.
- Input Connections: 2/3/4 wires
- Output Range: 0~5V, 0~10V, 0~20mA
- Accuracy: +/-0.5 Celsius
- Temperature Drift: +/-30 ppm (Full Range)
- Power Consumption: <0.95W
- Voltage: 24VDC +/-10%
