ISOMAG - Model MS1000 -Wafer Sensor for Electromagnetic Flow Meter
ISOMAG - Wafer sensor for electromagnetic flow meter MS1000. The MS 1000 ‘wafer’ sensor is easy to be mounted thanks to the absence of flanges; it can be installed by inserting it between counter flanges of various type (UNI, DIN, ANSI, JIS etc.).
Most popular related searches
It is suited for all the principal applications, in particular for the markets of water and HVAC and in cooling plants.

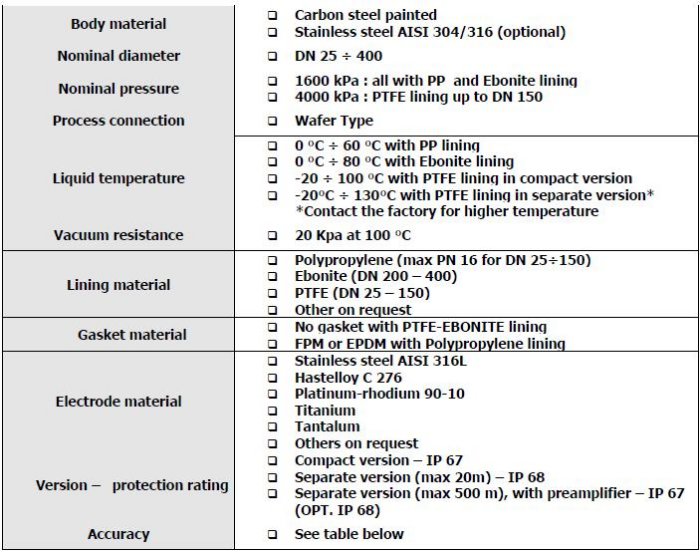

- Body material: Carbon Steel and SS
- Nominal diameter: from ND 25 to ND 400
- Flow range: 0…4.500 m3/h
- Nominal pressure: from PN 16 to PN 40
- Wide choice of process connections.
- Liquid temperature: from -20 to +150°C
- Wide choice of lining materials.
- Wide choice of electrodes materials.
- Accuracy and repeatability data are according to the chosen converter (see converters section).
