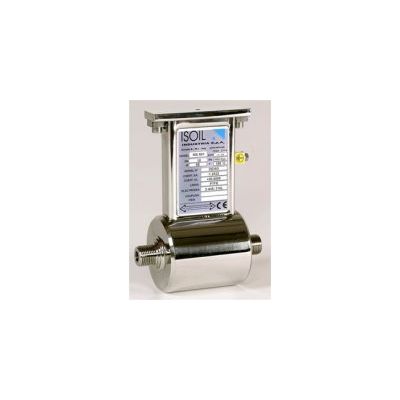

ISOMAG - Model MS501 -Microflow Sensor for Electromagnetic Flow Meter

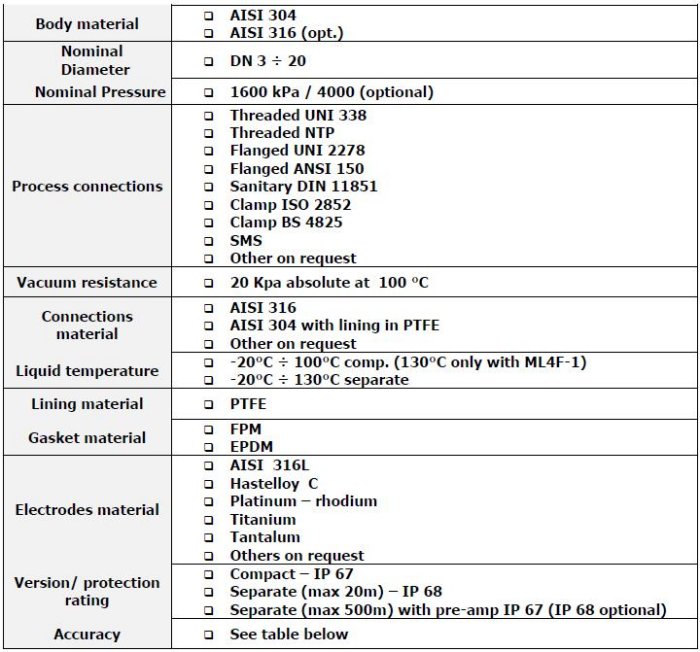

The MS 501 ‘microflux’ sensor is the smallest instrument of the series, with a wide range of process connections for all the applications. Body material: SS AISI304/316 Nominal diameter: from ND 3 to ND 20 Flow range: 0…12.500 l/h Nominal pressure: from PN 16 to PN 40 Wide choice of process connections. Liquid temperature: da -20 a +150°C Lining material: PTFE Wide choice of electrodes materials. Accuracy and repeatability data are according to the chosen converter (see converters section).
