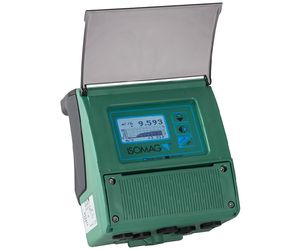

ISOMAG - Model MV145 -Battery converter for flow meters
he MV145 part of the FLOWIZ family is a battery-powered converter for flow meters that can power any ISOMAG sensor, insertion or flanged up to DN1800. The MV145 is also able to manage up to two pressure or temperature sensors. The MV145 can be powered by lithium or alkaline batteries and can be easily replaced, without interrupting the measurement. Batteries have an estimated life of 15 years or more based on measurement conditions. Optionally the MV145, can be powered from the mains, c.a. or c.c. or from a solar panel via the DC connection; in this case the batteries have a backup function, avoiding data loss in the event of a power failure. The converter has an internal logger capable of storing flow and pressure data with a recording capacity of 4 GByte, which guarantees years of recording. Allows programming via keyboard and display or with mini USB cable connected to the PC via MCP software.Most popular related searches
Technical Specifications
- Minimum conductivity value of the liquid 20 µS/cm.
- Accuracy ± 0.4% of the measured value, on request ± 0.2%
- Repeatability: better than ± 0.5%
- Analog output 4-20 mA active or passive if powered by battery.
- RS485 output with Modbus protocol.
- Housing material: nylon or aluminum for the IP68 version.
