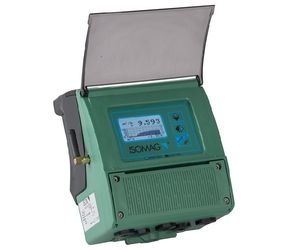

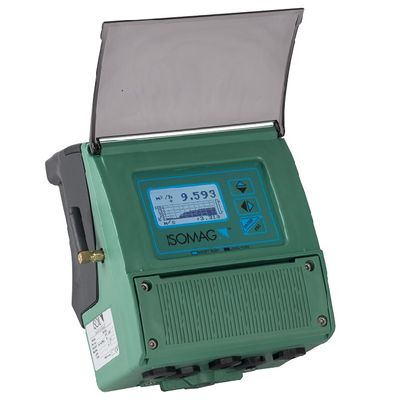

ISOMAG - Model MV255 -Modem Battery Converter for Flow Sensors
The MV255 part of the FLOWIZ family is a battery converter with integrated modem that can power any sensor of the ISOMAG family, insertion or flanged up to DN1800. The MV255 is also able to manage up to two pressure or temperature sensors. The MV255 can be powered by lithium or alkaline batteries, the batteries can be easily replaced, without interrupting the measurement. Batteries have an estimated life of 15 years or more based on measurement conditions. The converter has an internal logger capable of storing flow and pressure data with a recording capacity of 4 GByte, which guarantees years of recording. The instrument is equipped with advanced diagnostics thanks to the BIV (built-in verifier) which constantly monitors various sensor parameters, anticipating possible problems.Most popular related searches
Technical Specifications
- Accuracy ± 0.4% of the measured value, on request ± 0.2%
- Repeatability: better than ± 0.5%
- Analog output 4-20 mA active or passive if powered by battery.
- Programming via keyboard and display or with mini USB cable connected to the PC via MCP software.
- Housing material: nylon or aluminum for the IP68 version.
