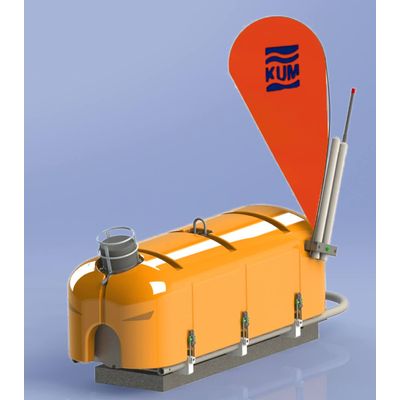

ISOPOD - Model K/MT 4231 -Lightweight Ocean Bottom Seismometer
K.U.M. had great success from the start with NAMMU. However, the team was soon faced with an interesting challenge: how to develop a new, more compact, short-term OBS system that would carry only the OBS essentials in an even smaller, more cost-effective package.
Their answer to this challenge was a new OBS that they called ISOPOD. ISOPOD is designed to deliver the best results by autonomously recording seismic data for over three months in water depths of up to 6,000m. It is equipped with three 4.5Hz geophones, hydrophone, the ultra-low-power four-channel datalogger 6D6 and an acoustic releaser, which is integrated into the main pressure tube to save weight, cost and set-up time.
ISOPOD is also equipped with the external memory StiK which can be exchanged in seconds and redeployed without opening the pressure case. And, with a total weight of only 95kg, ISOPODs can easily be stacked for transportation with up to ten units fitting on a standard pallet. Without any compromise on quality or reliability, ISOPOD is as small and lightweight as a short-term OBS possibly can be.
Application:
Not applicable for this product
Features / Benefits:
Not applicable for this product
MECHANICAL DATA
Size: 1200 x 400 x 365 mm
Weight: 95 kg fully equipped
Frame: Titanium
Pressure tube: Titanium
Buoyancy: Syntactic foam
ELECTRONICS DATA
Data logger: Ultra-Low-Power “6D6”, 125 milliWatt @ continuous recording, 4 channels @ 32 bits, up to 4000 sps
Geophones: 4.5Hz resonance frequency, XYZ-orientation Hydrophone: HTI-04, optional DPG, optional APG
Release: Mechanical-acoustic, optional additional time release
Location: 2m high visibility flag, flash unit, radio beacon, Iridium Satellite Positioning package (optional), AIS Marine Traffic package (optional)
