Wille Geotechnik - Isotropic Triaxial testing System

Our Isotropic Triaxial Cell is a state-of-the-art device designed for advanced geotechnical testing of soil and rock samples under controlled isotropic stress conditions. This cell enables researchers and engineers to study the mechanical behavior of materials under uniform pressure from all directions, simulating realistic subsurface conditions encountered in engineering projects such as tunneling, excavation, and foundation design.

This series of Soil triaxial testing systems are designed and manufactured to perform stress path triaxial testing on soft rocks under different temperature conditions. Many tests require temperature controlling of specimen either for high temperature or for low temperatures and this requires new designed system which would be able to avoid any temperature gradient in sample during tests and make a unique constant temperature condition during tests.

• Stiff cell construction for volume measurement
• Cell construction made of high pressure proved stainless steel
• Expandable for different sample sizes
• High pressure feed-throughs for internal measurment
• 6 Quick connections for filling, emptying, de-airing, 2 x pore pressure and cell pressure
• Uniform Pressure Application: The isotropic design ensures equal pressure application on all three axes, allowing for precise evaluation of material properties under true isotropic conditions.

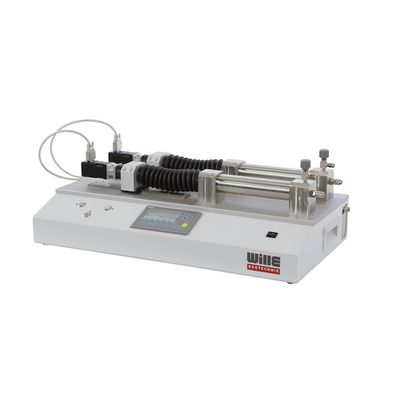

• High Precision Control: Equipped with advanced pressure control systems, the cell allows accurate regulation of confining pressure and pore pressure, offering flexibility for various test scenarios.
• Versatility: Compatible with both soil and rock specimens, the cell is suitable for a wide range of geomechanical experiments, including the determination of deformation characteristics, shear strength, and compressibility.
• Durable Construction: Built with high-strength materials to withstand extreme pressures, the cell ensures long-lasting performance and reliability in laboratory environments.
• Data Acquisition System: Integrated with cutting-edge sensors for real-time monitoring of stress, strain, and pore pressure, the system delivers accurate data collection for detailed analysis.

• Max Confining pressure : 20 MPa
• Sample Size : Up to 100mm
• Pore pressure : Up to 20 MPa
• Pressure accuracy : 0.1% F.S
• Pressure Resolution : 0.1 kPa
• Temperature Range : Frozen Soil test down to -20 °C degree, High Temperature test up to +200 °C

• Permeability test
• Different sample sizes
• Ultrasonic test package

• Geotechnical Engineering: Ideal for analyzing soil and rock stability in projects such as dams, tunnels, and retaining walls.
• Research and Development: A valuable tool for academic and industrial research focused on material behavior under isotropic stress conditions.
• Construction and Mining: Provides critical data for designing safe and efficient structures, foundations, and underground excavations.
