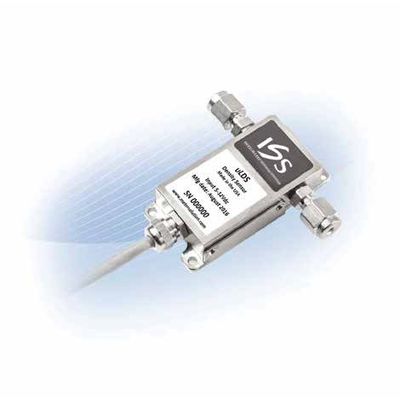

ISS - Model MCS -Methanol Concentration Sensor

The Micro Sensor is also available as a Methanol Concentration Sensor or MCS. This version of the Micro Sensor is designed to meet the needs of the Direct Methanol Fuel Cell (DMFC) industry. It measures the methanol concentration in the water used to feed the cell. Methanol concentration is very important to the operation of the cell for optimal performance. The MCS replaces the previous FC10. Methanol concentration is calculated using fluid density and temperature. A conversion equation is used calculate methanol concentration based on these measurements. This product has standard 0.5 to 4.5 voltage outputs for temperatures of 41 to 158 F (5 to 70 C) and concentration 0 to 10 wt%. Optional ranges are available.
