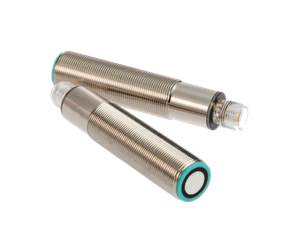

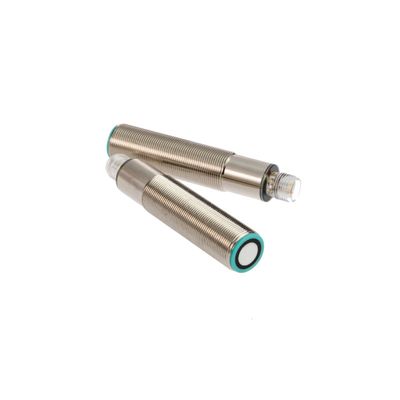

ISSR - Model ISUB1000-18GM75 -ISSR All-in-One Ultrasonic Sensor: 1m Range Level & Object Detect
Features: 1 M 200kHz Fully Integrated Ultrasonic Ranging Sensor 3-in-1 Output Versatility: Supports Switching (NPN/PNP), Digital, and Analog (Current/Voltage) outputs, switchable via firmware update (Serial Tool) High-Frequency Precision: 200kHz operating frequency ensures stable detection of varied targets Extended Sensing Range: Reliable detection range up to 1000 mm (1 meter) with a small blind zone Material Independence: Flawlessly detects transparent glass, plastic, dark objects, and liquids regardless of color or texture Robust Industrial Design: Fully integrated M18 housing built for harsh environments Dual-Purpose Application: Optimized for both Object Presence Detection and Continuous Level Measurement
ISUB1000-18GM75
ISSR All-in-One Ultrasonic Sensor: 1M Range Level & Object Detect
M18 ultrasonic sensor, ultrasonic ranging sensor, transparent bottle detection, liquid level sensor, industrial automation, beverage filling line sensor, 200kHz ultrasonic transducer, analog ultrasonic sensor, object presence detection
View More Other Products
Redefining sensor versatility, the ISUB1000-18GM75 is a fully integrated, 1-meter ultrasonic sensor operating at 200kHz. It distinguishes itself from fixed-function alternatives by offering field-configurable outputs.
Using a standard serial interface tool, the sensor's firmware can be updated to toggle between Switching, Digital, and Analog output modes, complete with A1/A2 distance learning for custom sensing ranges. This "Single Hardware, Multi-Mode" design streamlines inventory management and facilitates rapid replacement.
Robustly built for industrial demands, the sensor delivers consistent performance regardless of target material—ignoring color, transparency, and surface reflections. With a 1000 mm range and immunity to dust, it provides a universal solution for diverse applications, including terminal position detection and continuous level measurement.
Model
ISUB1000-18GM75-I-V1, ISUB1000-18GM75-U5-V1, ISUB1000-18GM75-U10-V1;
ISUB1000-18GM75-E4-V1, ISUB1000-18GM75-E5-V1, ISUB1000-18GM75-E8-V1, ISUB1000-18GM75-E9-V1;
ISUB1000-18GM75-TTL-V1;
Detection Range
60...1000 mm
60...1000 mm
60...1000 mm
Adjustment Range
70...1000 mm
70...1000 mm
70...1000 mm
Blind Zone
60 mm
60 mm
60 mm
Standard Target Plate
100 mm × 100 mm
100 mm × 100 mm
100 mm × 100 mm
Beam Angle
±7°
±7°
±7°
Transducer Frequency
Approx. 200 kHz
Approx. 200 kHz
Approx. 200 kHz
Response Delay
≤100 ms
≤100 ms
≤100 ms
Operating Voltage
I: 12...30 V DC, U5: 9...30 V DC, U10: 15...30 V DC;
9...30 V DC;
5...30 V DC;
No-load Current
≤30 mA
≤30 mA
≤30 mA
Output Type
I: 4-20 mA, U5: 0-5 V, U10: 0-10 V;
E4: NPN, E5: PNP, E8: NPN Hysteresis, E9: PNP Hysteresis;
TTL232 Interface;
Resolution
0.5 mm
0.5 mm
0.5 mm
Linearity
±1% F.S.
±1% F.S.
±1% F.S.
Repeat Accuracy
±1% F.S.
±1% F.S.
±1% F.S.
Rated Operating Current
-
200 mA (Short-circuit protection)
-
Load Impedance
U5/U10: ≥1 kΩ, I: ≤300 Ω;
-
-
Hysteresis Range
-
E4/E5: 1% of set distance
-
Temperature Drift
±2% F.S.
±2% F.S.
±2% F.S.
Operating Temperature
-25...+70 °C
-25...+70 °C
-25...+70 °C
Storage Temperature
-40...+85 °C
-40...+85 °C
-40...+85 °C
EMC Standard
GB/T17626.2-2006, GB/T17626.4-2008;
GB/T17626.2-2006, GB/T17626.4-2008;
GB/T17626.2-2006, GB/T17626.4-2008;
Protection Degree
IP67
IP67
IP67
Connection Type
V1 Connector (M12×1), 4-pin
V1 Connector (M12×1), 4-pin
V1 Connector (M12×1), 4-pin

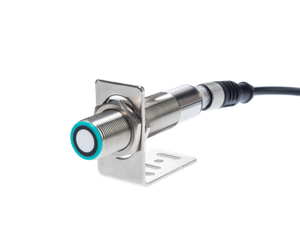

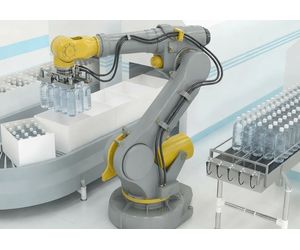

M18 Standard Size: The Perfect Optical Replacement Designed in a standard M18 housing, this 1m ultrasonic sensor is the ultimate upgrade for production lines, easily replacing failing optical sensors without changing brackets. It specializes in detecting transparent objects (plastic bottles, glass vials, clear films) and liquids, ensuring reliable counting and presence detection regardless of color, material, or reflectivity. Beyond packaging, its 3-in-1 output (Analog, NPN/PNP, TTL232) and 70mm blind zone make it versatile for Smart City & IoT applications, such as trash bin monitoring, tank level measurement, and robot obstacle avoidance.
