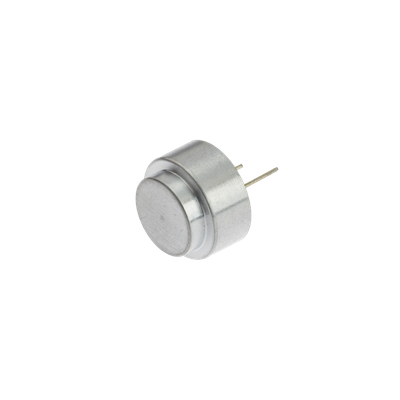

ISSR - Model ISU40-16TRBZ-T1 -Ultrasonic Sensor
Frequency: 40±1 KHZ. Minimum Impedance: ≥100mΩ. Capacitance: 1560-2040 @1KHZ. Sensitivity: Distance: 100cm, echo sensitivity ≥ 100us.
Most popular related searches
- Operating voltage: Maximum drive voltage 150Vp-p
- Working temperature: -40~80 ?
- Angle: 45±10(°)
- Shell material: Aluminum
- Use: ranging
- Wiring Instructions: Long pin: sensor, Short pin: sensor-
