ISTI - Portable Seismic Stations

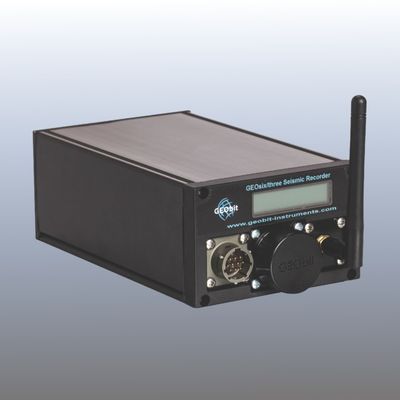

GEObit provides compact solutions for quick-deploy seismic stations based on the GEOThree digitizer/recorder and C100 sensor. The GEOThree recorder has 3 input channels and integrated sensor electronics. The digitizer is based on a powerful, wide dynamic range 32bit delta-sigma analog-to-digital converter, with very low noise characteristics and excellent power supply rejection. The sampling rate can be set to 50, 100, 200, 250, 500, and 1000 samples per second. The sensor response is 10sec – 98Hz. The data are stored into removable microSD card. Ultra low power consumption allows over one month of operation if getting powered from an ordinary 12V/65Ah lead-acid battery. The LCD displays the State-of-Health, time, date, and other information related to the instrument’s operation. The digitizer is intended for installation in harsh environments. The instrument supports embedded SEEDlink server for real time data telemetry.
