IUL - Model iPeak + -Lateral Flow Reader
iPeak expands its family with the iPeak+, colorimetric lateral flow reader for your large cassettes, up to 7 lines in one strip and up to 5 strips in one cassette with the essence of the iPeak®. With the breakthrough Flash Eye Technology, iPeak®+ is the perfect match for reading your cassettes, enhancing the colors of your strip, and removing the subjectivity of the eye human. When the human eye cannot see the lines, the iPeak® can do it.
With the sensitivity and technology of the iPeak®.
Flash Eye Technology is the combination of excellence in image acquisition and processing and the IUL’s know-how. Flash Eye technology enables to enhance the colors of any colorimetric lateral flow test with an outstanding dynamic range for visual, qualitative, and quantitative assays.

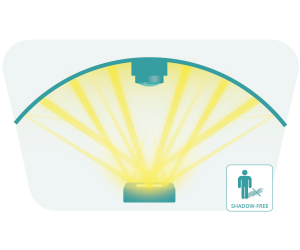

iPeak® brings a camera that captures the image of the test illuminated from LED lights situated in the most studied geometry which allows a precise and uniform illumination. This technology avoids reflections and shadows diffusing and homogenizing the light in a chamber which makes iPeak®’s the best rapid test reader. Know more about this technology here.
Data exportation and Traceability
The results and images of the test are stored in the iPeak®+ internal memory and can be printed or exported by various means (USB memory, or Ethernet/Wi-Fi) following the secure HL7 protocol, the most used in hospital environments). Its barcode reader – which also reads QR or Datamatrix -allows quick identification of the sample.
Export the results to your server via SFTP, whenever and wherever the testing is performed.
- Analysis: Qualitative, quantitative or semi quantitative
- Stored results: 200 or 800 (depending on the model), including results and images
- Number of test lines per strip: Up to 7 lines / strip
- Up to 5 strips
- Measurement time: 15 seconds, one strip, 2 lines
- Languages: Español, English, Deutsch, Français, Italiano, Polski,
- Connectivity: WiFi, Ethernet, and LAN, Port USB for printer or export results
- Sample traceability: Datamatrix, QR, and barcode
- Battery: 4h autonomy
- Power range: 100-240 V
- Frequency range: 50-60 Hz
- Maximum power: 18 W
- Air temperature: 15-35ºC
- Relative humidity: 15-75%
- Place of operation: For indoor use only
- Maximum dimensions of the cassete (LxWxH): Up to 80 x 56 x 6mm / 3.2 x 2.2 x 0.2 in
- Dimensions (LxWxH)
- Including Tray: 150 x 140 x 185 mm / 5.9 x 5.5 x 7.2 in
- Weight: 900g / 1.98lb
- Screen: Color, capacitive, 4.3’’ touch screen
