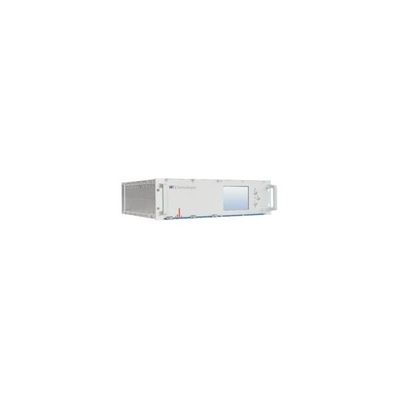

IUT - Model IMS -Multi-Gas Analyzer System
The IMS-Analyzer is a multi-gas analyzer as Ion Mobility Spectrometer (IMS) with high sensitivity in the lower ppb-range and high resolution. With this trace-gas analyzer toxic gases can be detected and identified without any enrichment directly in situ already at a very low concentration level. For the further enhancement of the selectivity and further reduction of cross sensitivities the IMSAnalyzer is also available as GC-IMS approach. There the IMS is coupled with a gas chromatographic column (GC) for pre-separation.
With the IMS-Analyzer, IUT offers a high sensitive, high selective, reliable, and easy to operate analyzer. The analyzer offers an excellent price / performance ratio which makes it quite interesting for replacements of expensive process gas chromatographs.
This unique combination of GC column with IMS to a GC-IMS is also offered as mobile analyzer and is the smallest GC-IMS analyzer available on the market.
- High sensitivity in lower ppb-range
- Enhancement with GC-columncoupling (GC-IMS) possible
- Analysis directly in situ (No Tedlar bag sampling / no lab analysis)
- Operation under ambient air pressure
- Long-term-stability and reliability
- Solid-state electronics and few moving parts
- Low Maintenance Time High Up Time
- Chemistry, petrochemistry, refinery: Aromates, Phosgene, CS2, Alkane series, Cl2, Ketones, …
- Safety at work: Hydrocarbons, Chlorine, HCl, Hydrogen cyanide, Phosgene, H2S, CS2, …
- Ion exchange resins production: CMME, BCME, EDC and DCM
- Agriculture: H2S, NH3, pesticides (e.g. E 605), …
- Semiconductor production:

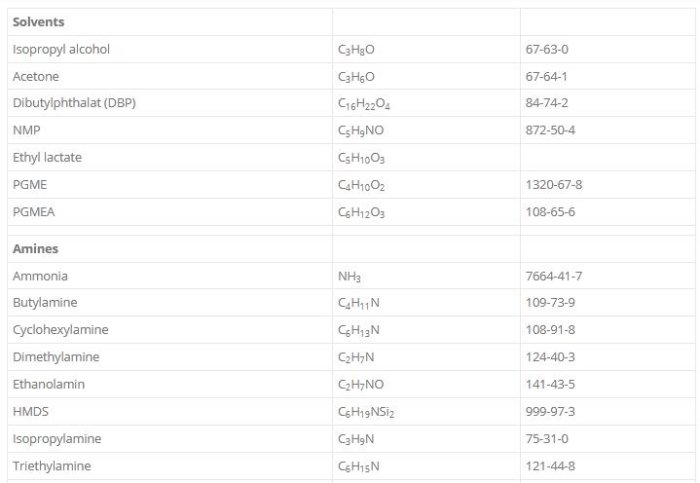

- Doping gases, NH3, Amines, B2H6, …Solvents

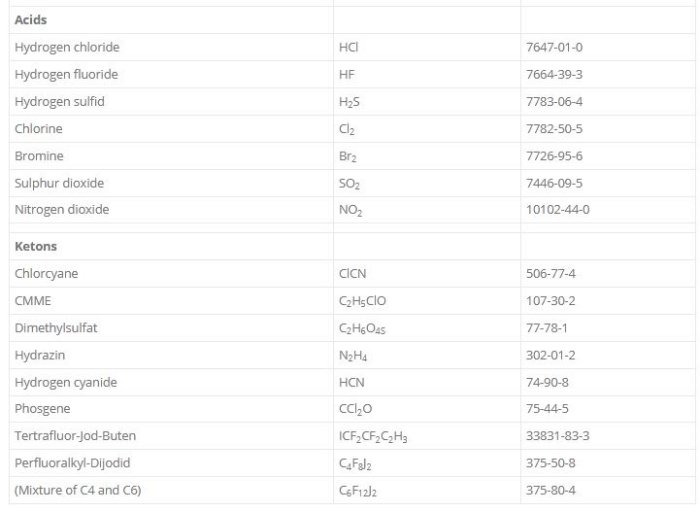

- Acids
- Amines
- Storage of hazardous materials and waste: Phosgene, Chlorine, HCl, Hydrocarbons, …
- control of filter systems:
- Food industry: Quality control, flavors, …
- Oil- und gas industry:
- (Exploitation, production): Detection- und monitoring systems
- H2S, mercaptanes, …:
- Laboratory: Detection- und monitoring systems
- Medicine: Analysis of breath air, bodily fluids, exudation
- Energy industry: H2S, SO2, HF, …
- Shipping: Fire alarm systems, e.g. pyrolytic products
- Tunneling, garages, …: NOx, SO2, mercaptanes, …
- Water pollution control, liquid waste: Aromates, DCE,…
- Waste disposal und -burning, recycling: H2S, NH3 amine, HC’s, …

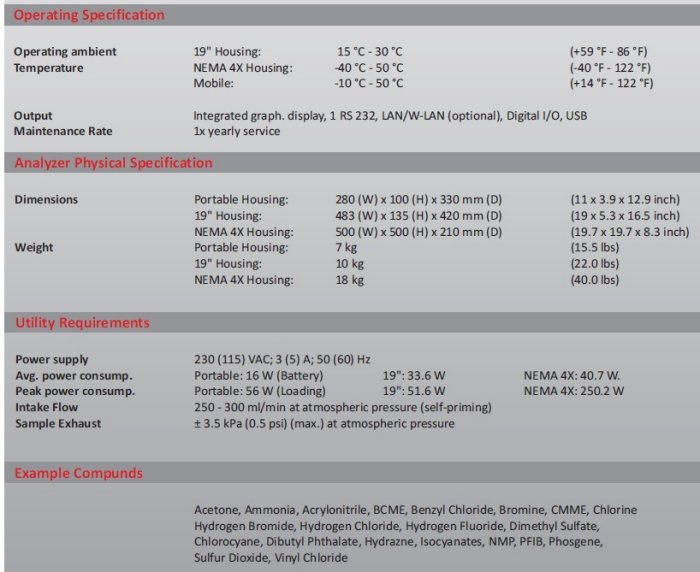

IMS-Analyzer
- Principle of Operation: IMS with gaschromatographic pre-seperation (GC-IMS), no carrier gas required
- Resolution: ± 2 % of full scale
